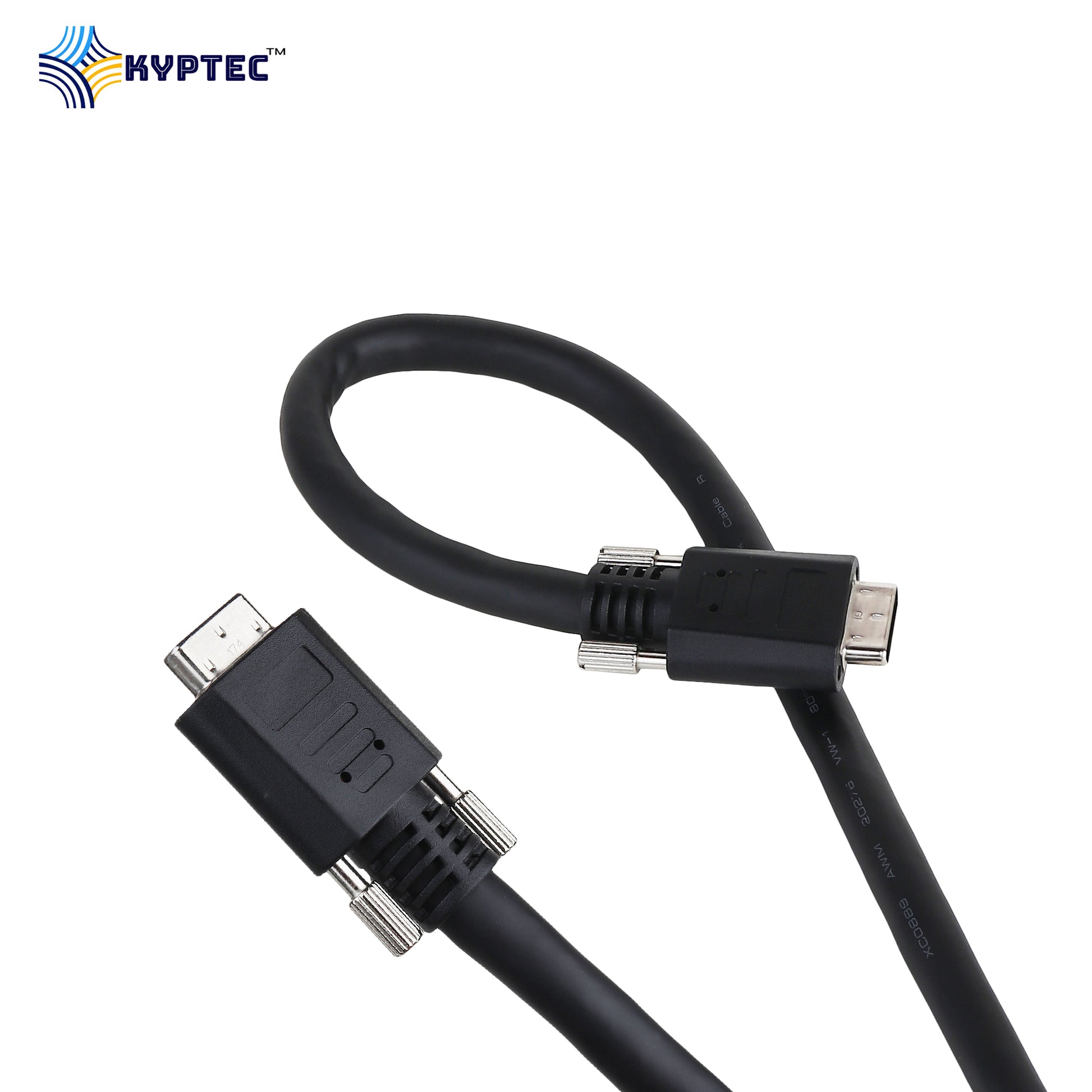

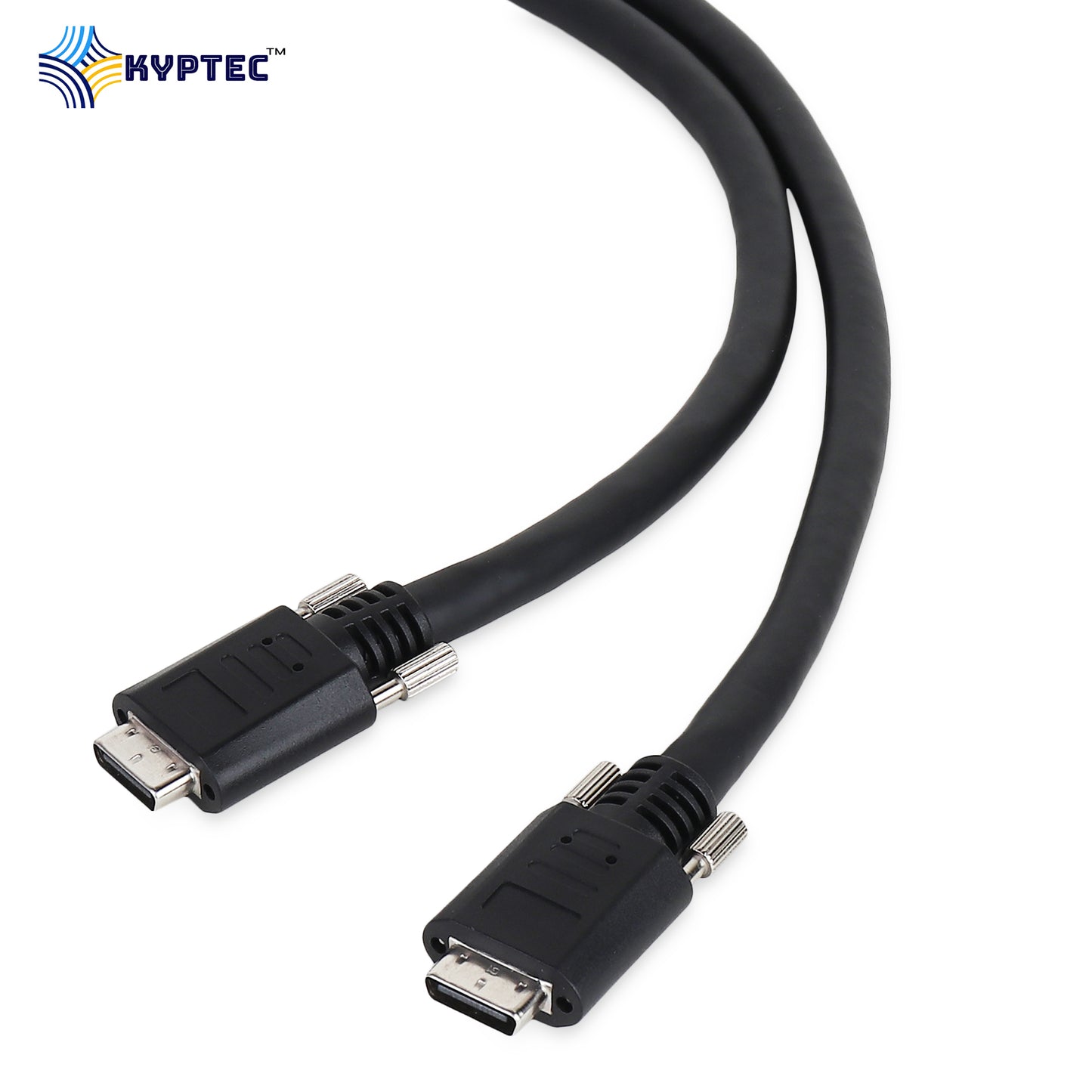

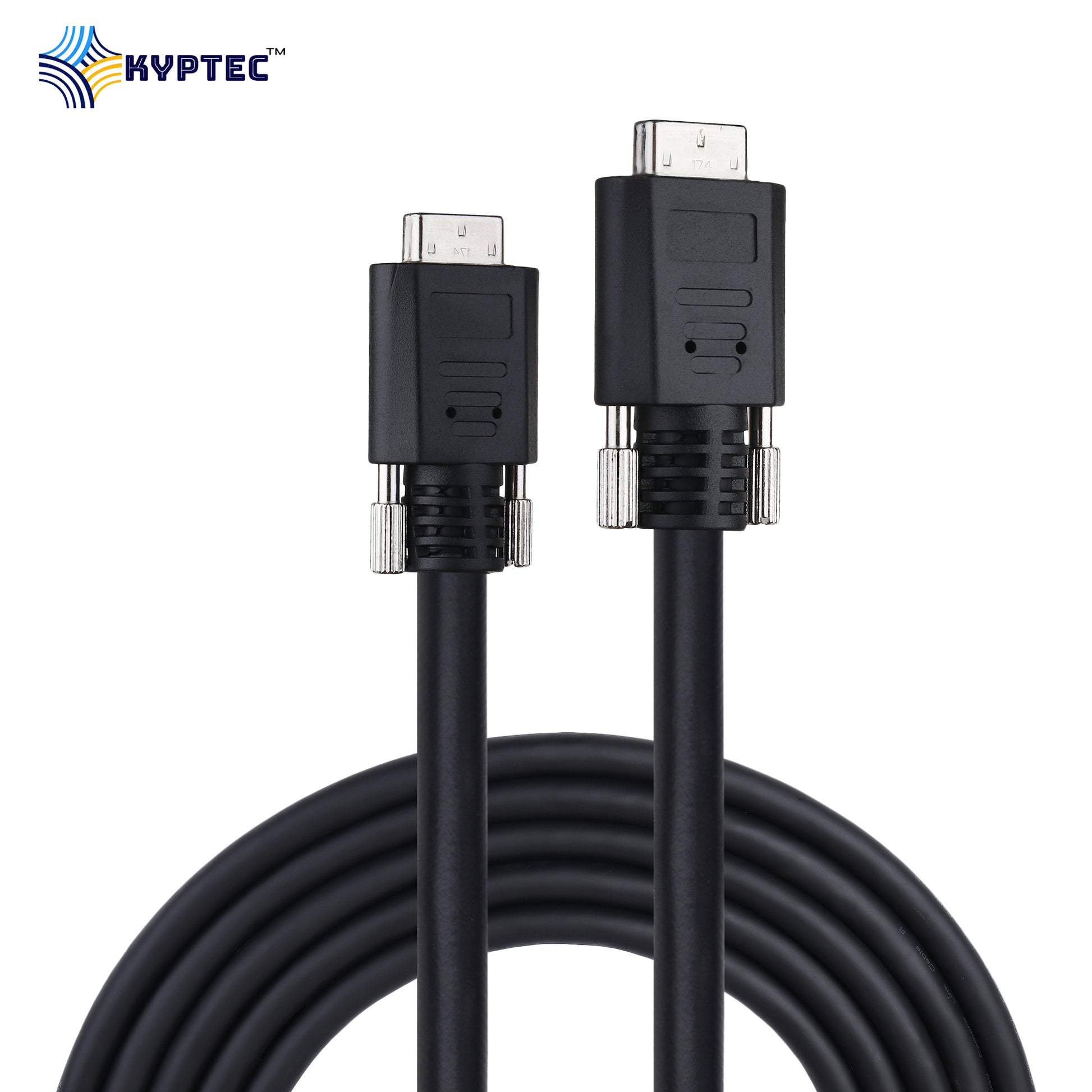

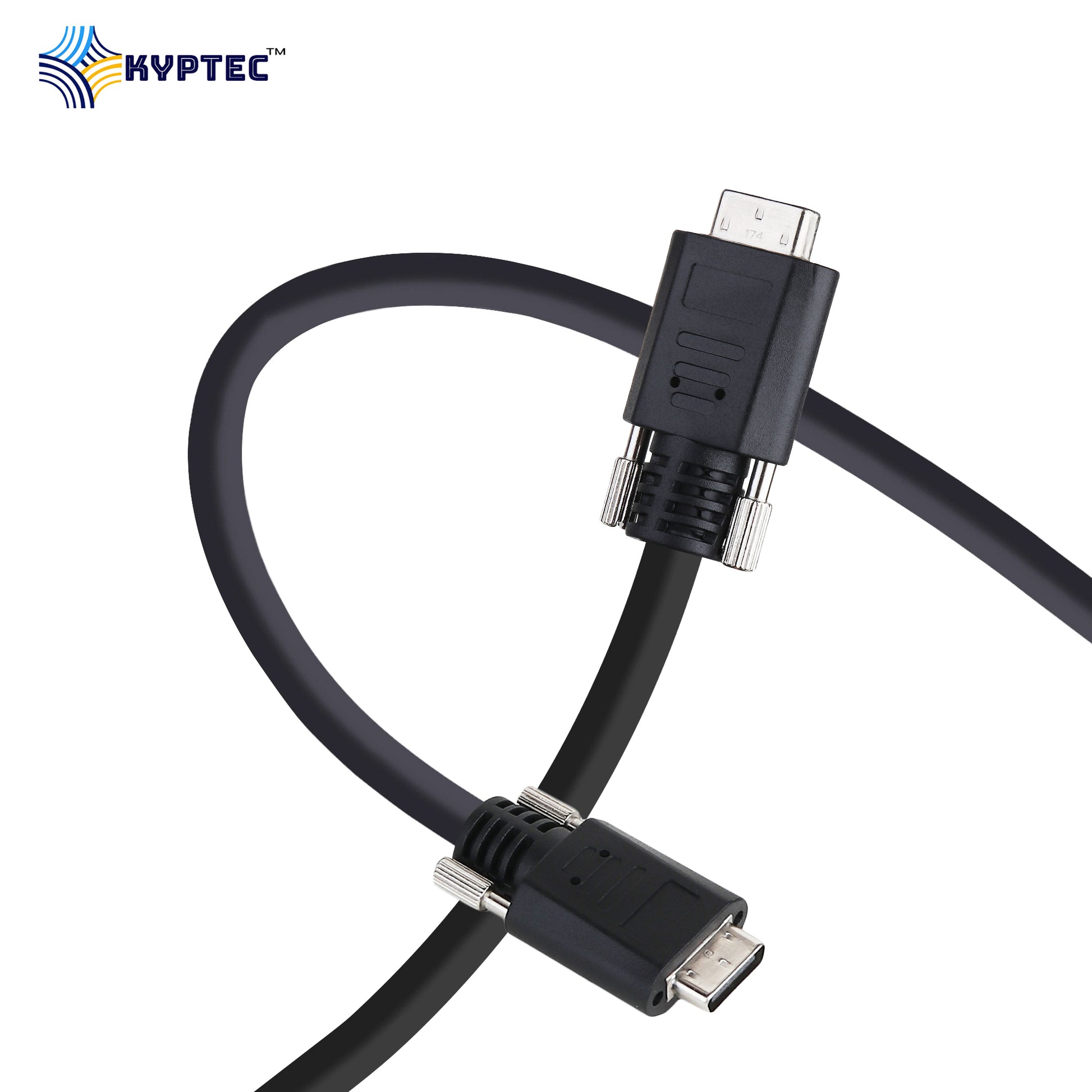

Industrial Camera link Camera Cable: SDR-26P Male To SDR-26P Male Type - ( SKU:934 )

PRODUCT FEATURES:

• Optimize your industrial camera setup with our SDR 26P Male to SDR 26P Male Data Cable, designed for high flexibility and durability. It provides a reliable and high-bandwidth connection between the camera and the image acquisition device.
• This cable features 24 AWG oxygen-free copper for superior conductivity and high-toughness for added strength.
• It Supports high-speed data transfer and is capable of transferring large amounts of image data. The Camera Link cable carries both video data and control signals, allowing for synchronized image capture and control of the camera settings.
• With anti-interference and anti-jamming ability, it can work in industrial environment.
• It's compatible with cameras and image acquisition devices from different vendors, realizing interoperability between devices.

APPLICATIONS:

• Industrial and scientific imaging systems
• Machine Vision System
• Industrial machine vision cameras
• Product Testing/Image Recognition
• Factory Automation Systems.

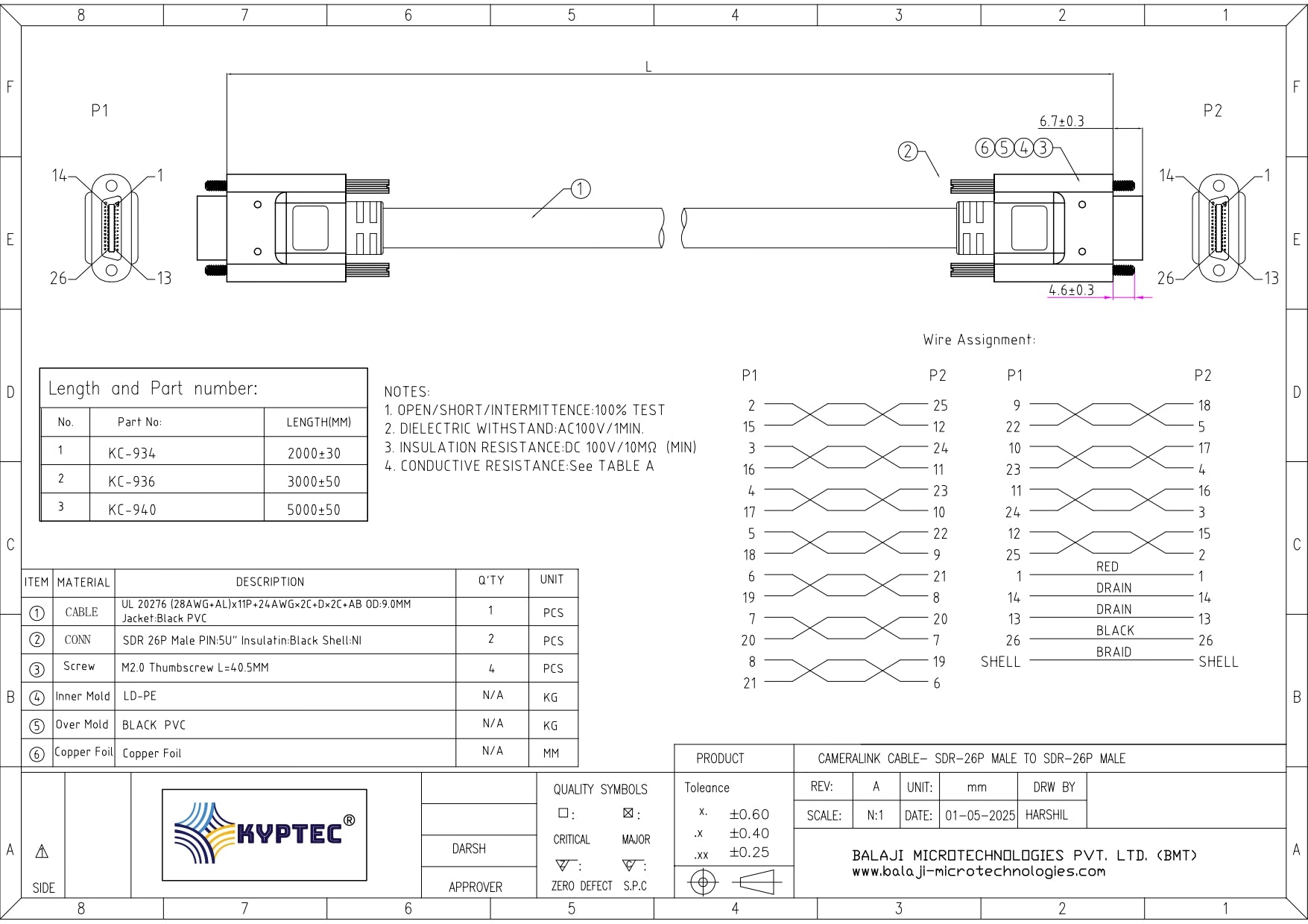

PRODUCT SPECIFICATIONS:

• Cable Assembly Type : Industrial Camera link Camera Cable: SDR-26P Male To SDR-26P Male Type
• Cable Type : CAMERA LINK
• Cable Length Options : 2 Meter / 3 Meter / 5 Meter, Other Cable length on request.

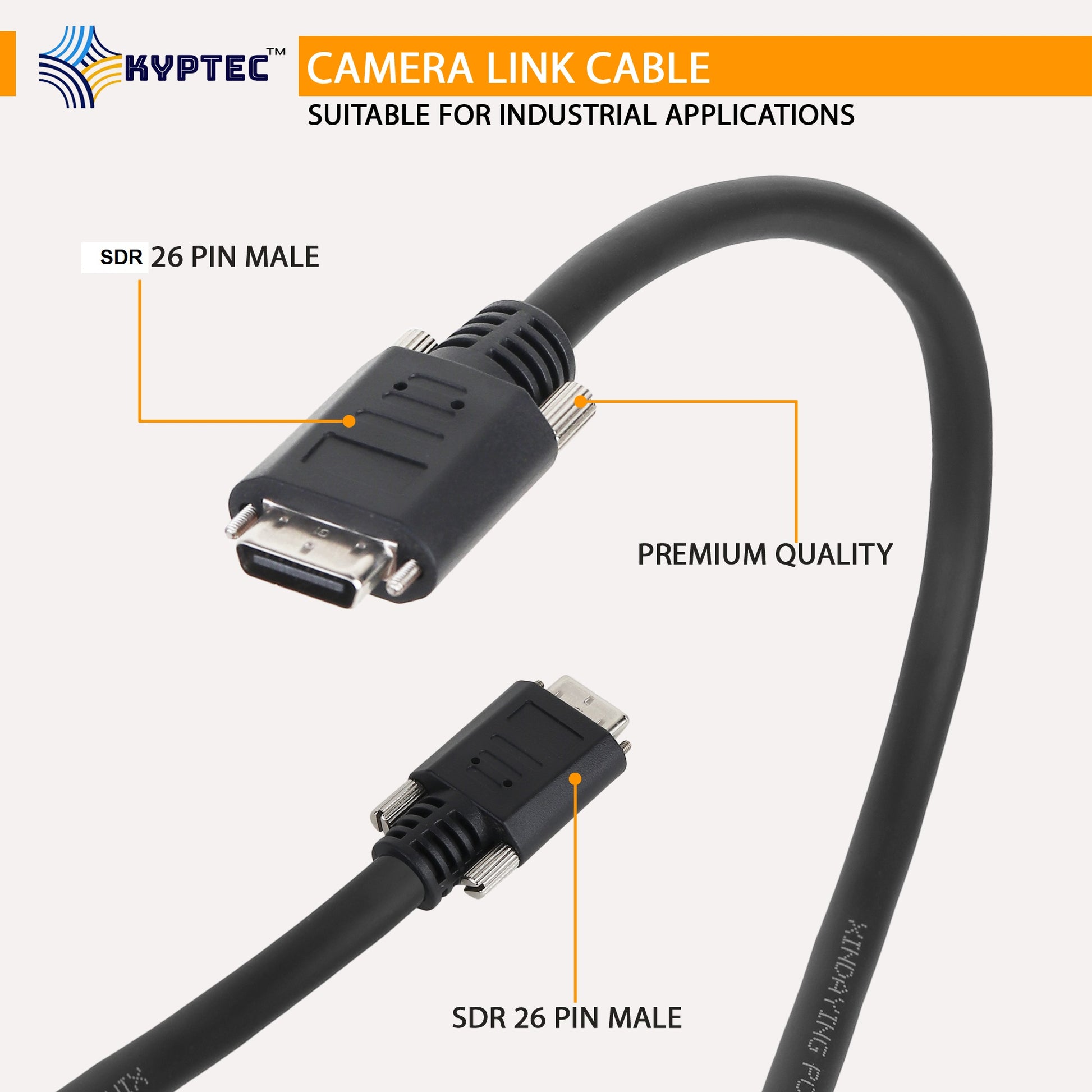

• Plug Side A : SDR-26P Male, 26 Pins, With Screws, molded
• Plug Side B : SDR-26P Male, 26 Pins, With Screws, molded
• Cable Specification : Highly flexible, PVC Cable, 24 AWG,
• Cable Color : Black
• Connector Orientation (End A) : Straight Type
• Connector Orientation (End B) : Straight Type
• Outer Sheath : Shiny black, UV-resistant, abrasion resistant, water repellent etc,.

Package Includes:

• 1 x Industrial Camera link Camera Cable: SDR-26P Male To SDR-26P Male Type

Note :- Product Images are shown for illustrative purposes only and may differ from the actual product.
