LRS-35-5 – 5V 7A 35W MeanWell SMPS Metal Power Supply - ( SKU:355 )

LRS-35-5 – 5V 7A 35W MeanWell SMPS Metal Power Supply

LRS-35 series is a 35W single-output enclosed type power supply with 30mm of low profile design. Adopting the full range 85VAC ~ 264VAC(selectable by switch), the entire series provides an output voltage line of 5V.

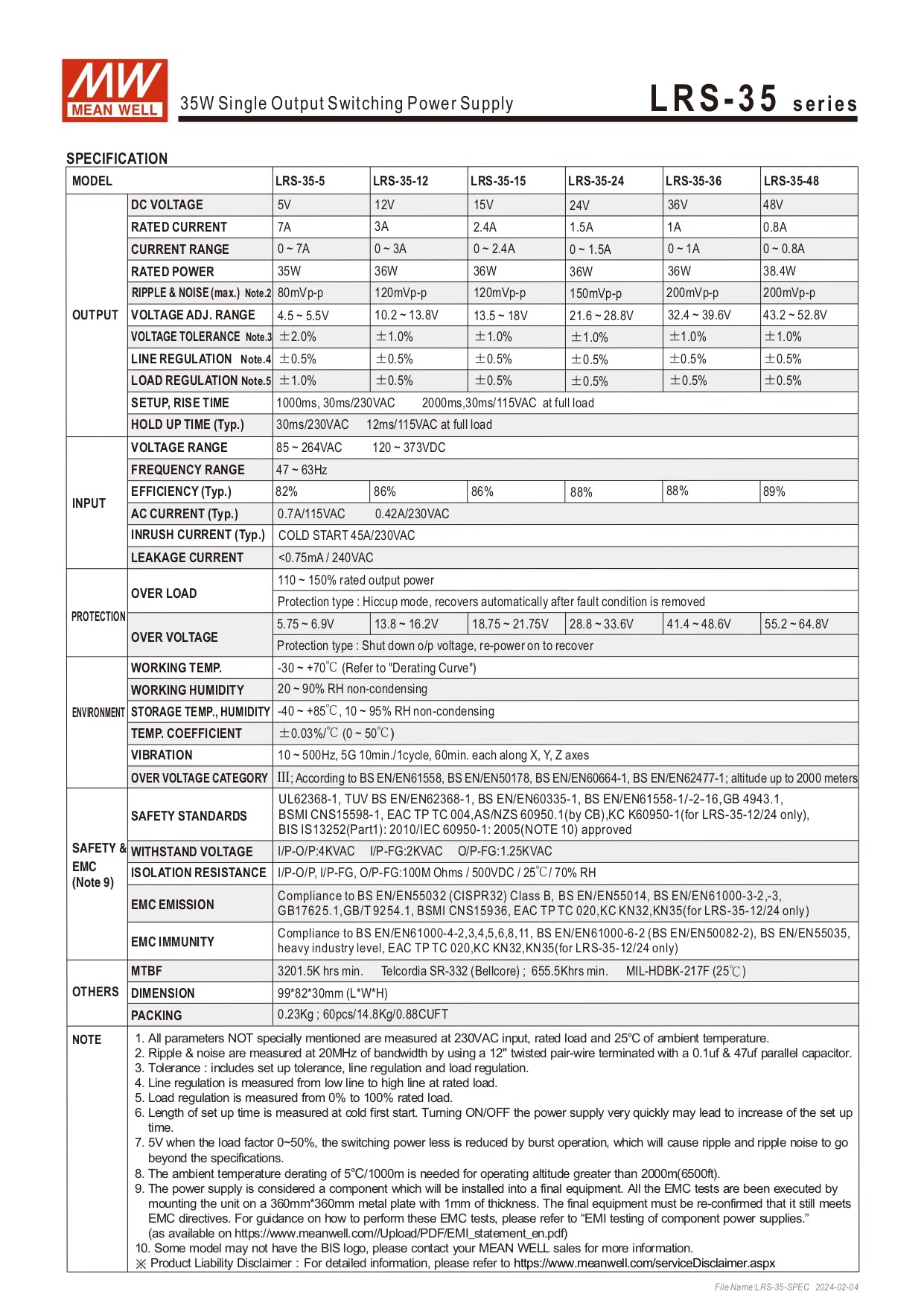

Features/Specs:

• Manufacturer: MEAN WELL
• Manufacturer Part No: LRS-35-5
• Series: LRS-35
• Product Category: Switching Power Supplies
• Input Voltage: 85VAC to 264VAC, 120VDC to 373VDC
• Input Frequency: 47Hz to 63Hz
• Number of Outputs: 1 Output
• Output Voltage: 5VDC
• Output Current: 7A
• Output Power: 35 Watts
• Mounting Style: Panel

Application:

• Industrial automation machinery
• Industrial control system Mechanical and electrical equipment
• Electronic instruments, or apparatus
• Household appliances

Package Includes:

• 1 x LRS-35-5 – 5V 7A 35W MeanWell SMPS Metal Power Supply

Note :- Product Images are shown for illustrative purposes only and may differ from the actual product.
