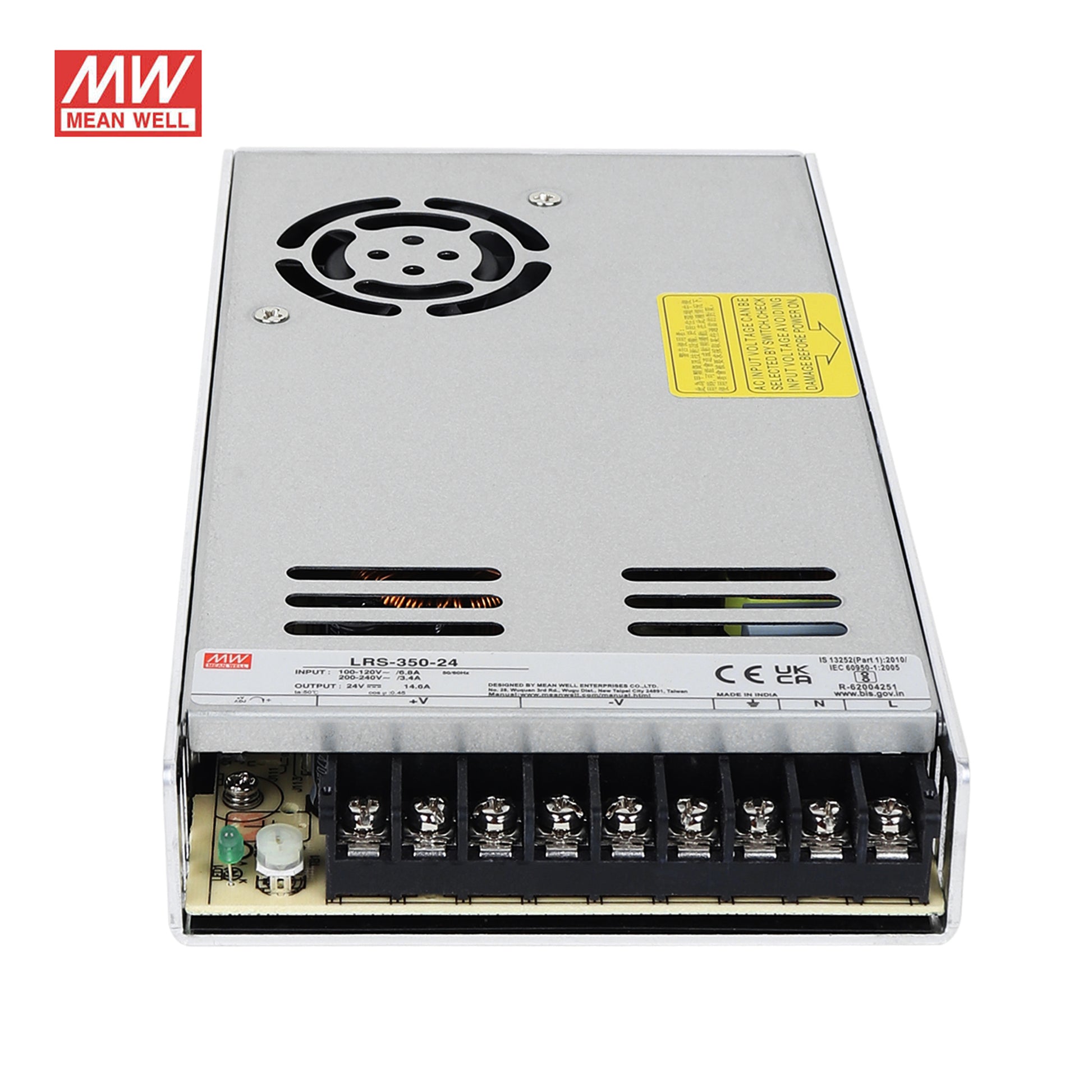

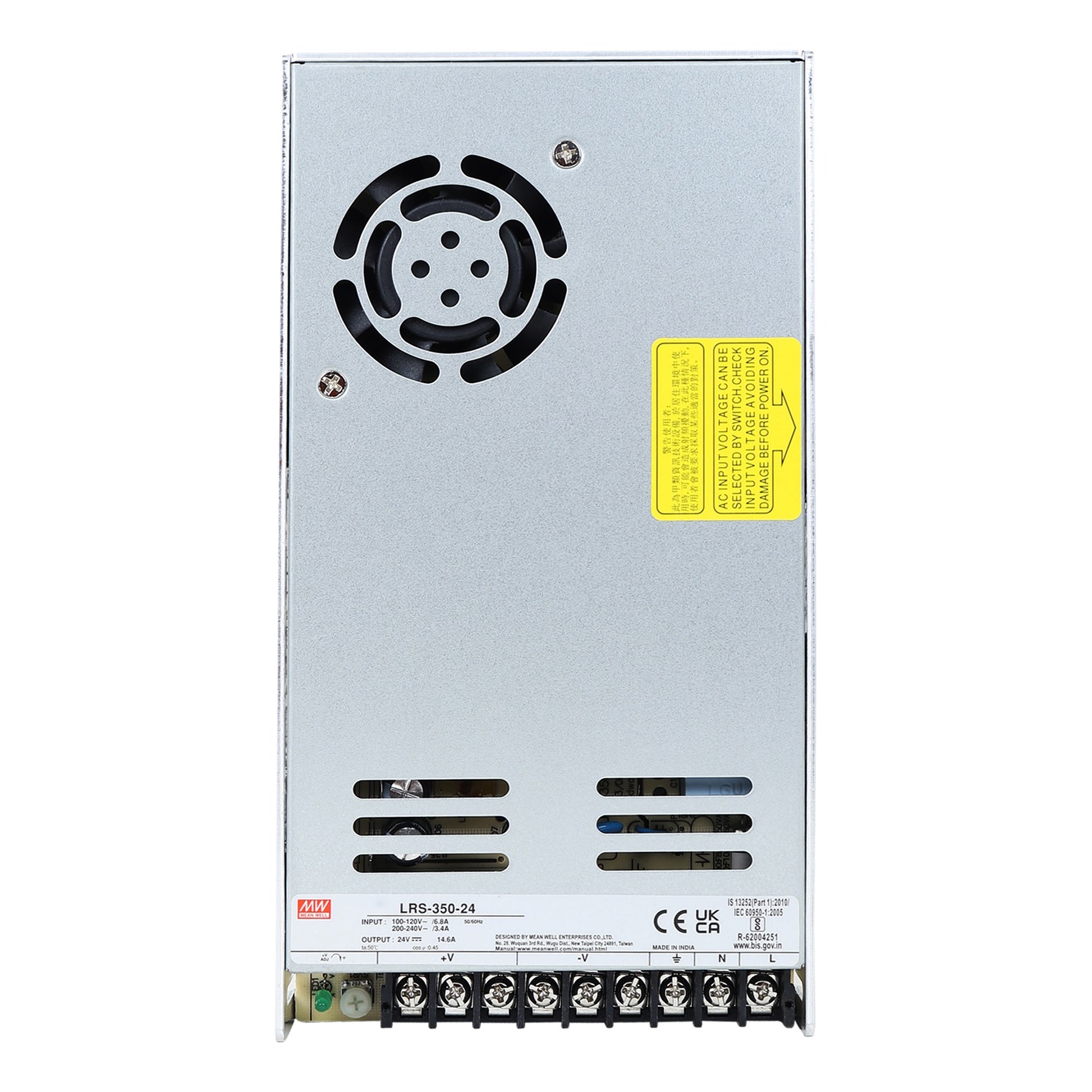

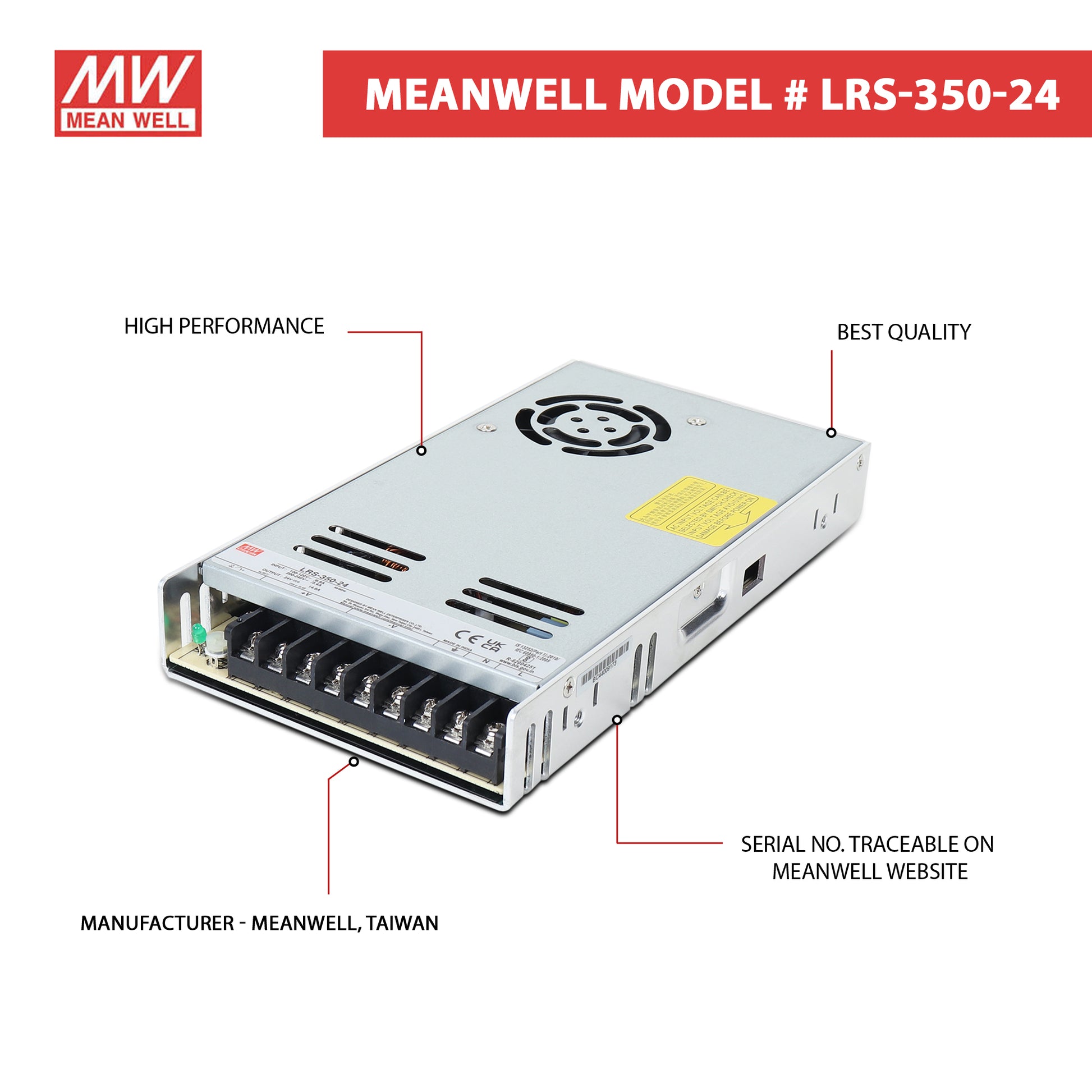

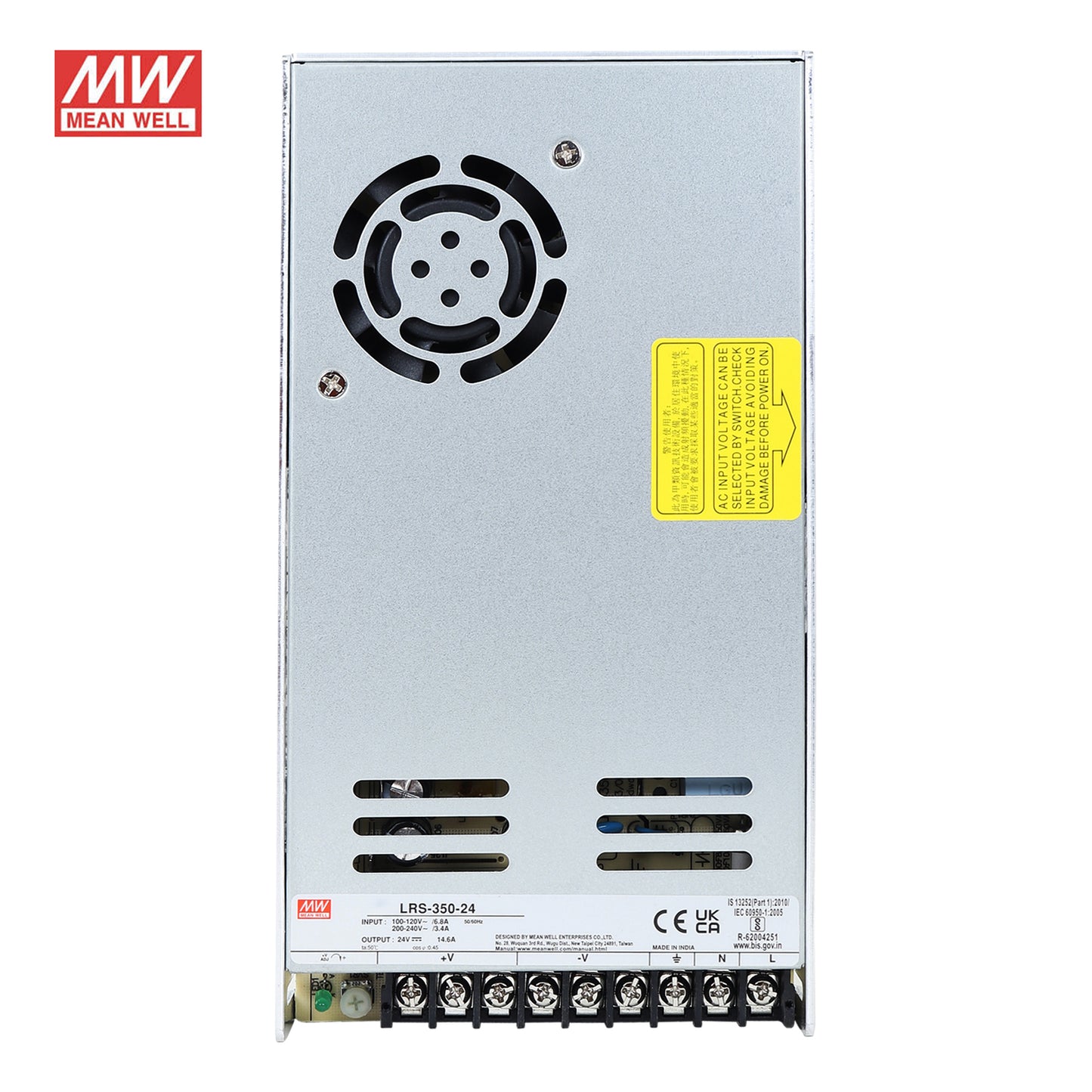

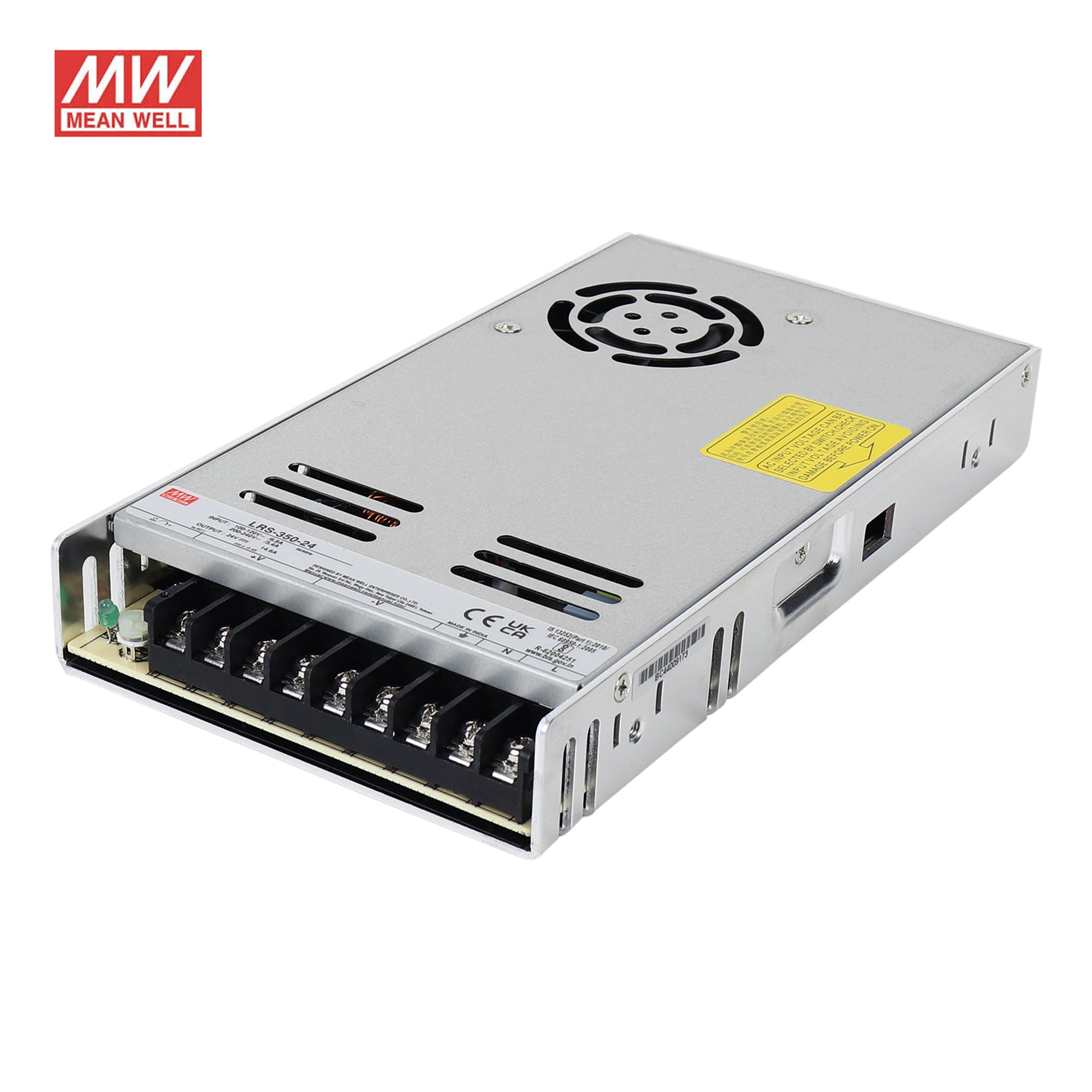

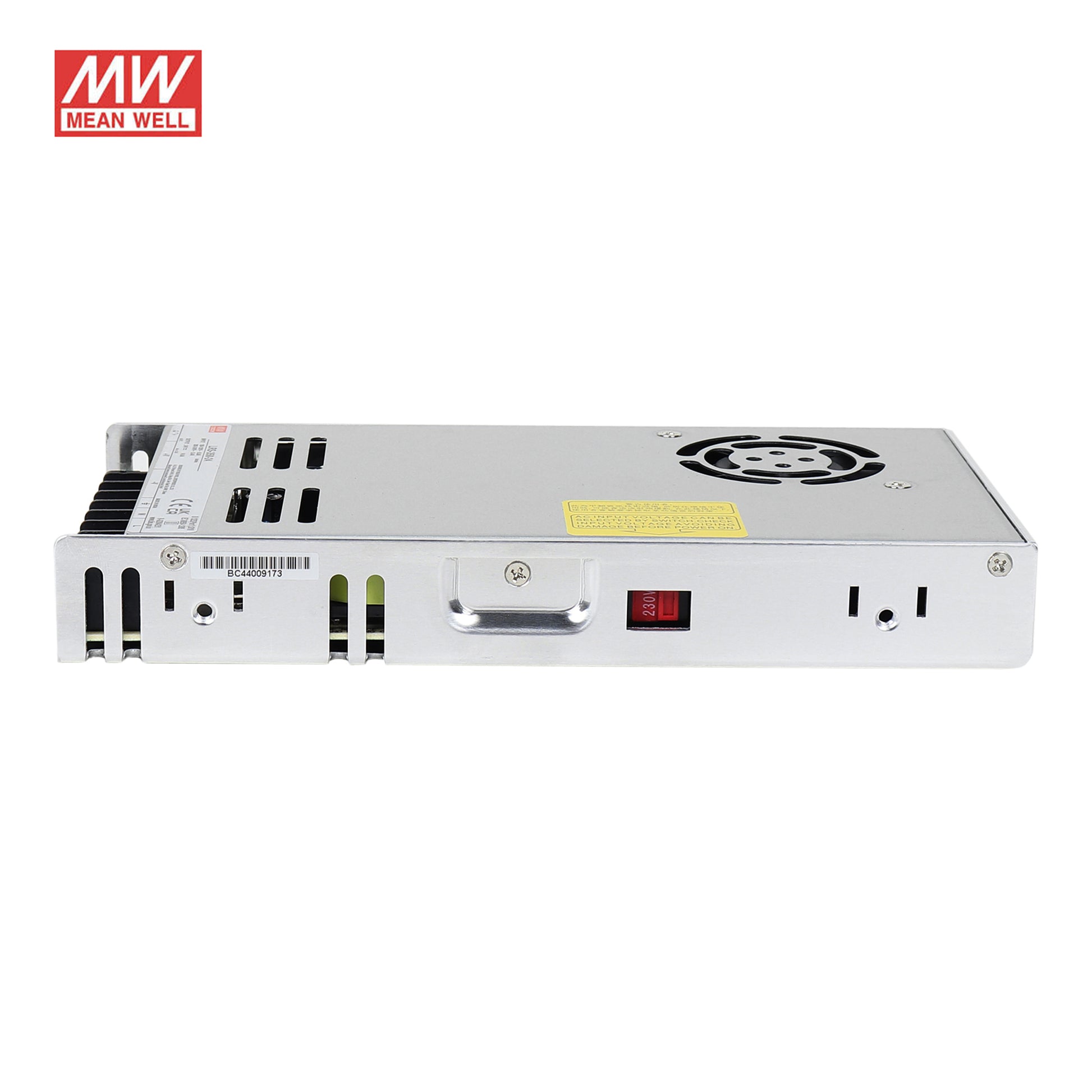

LRS-350-24 – 24V 14.6A 350.4W MeanWell SMPS Metal Power Supply

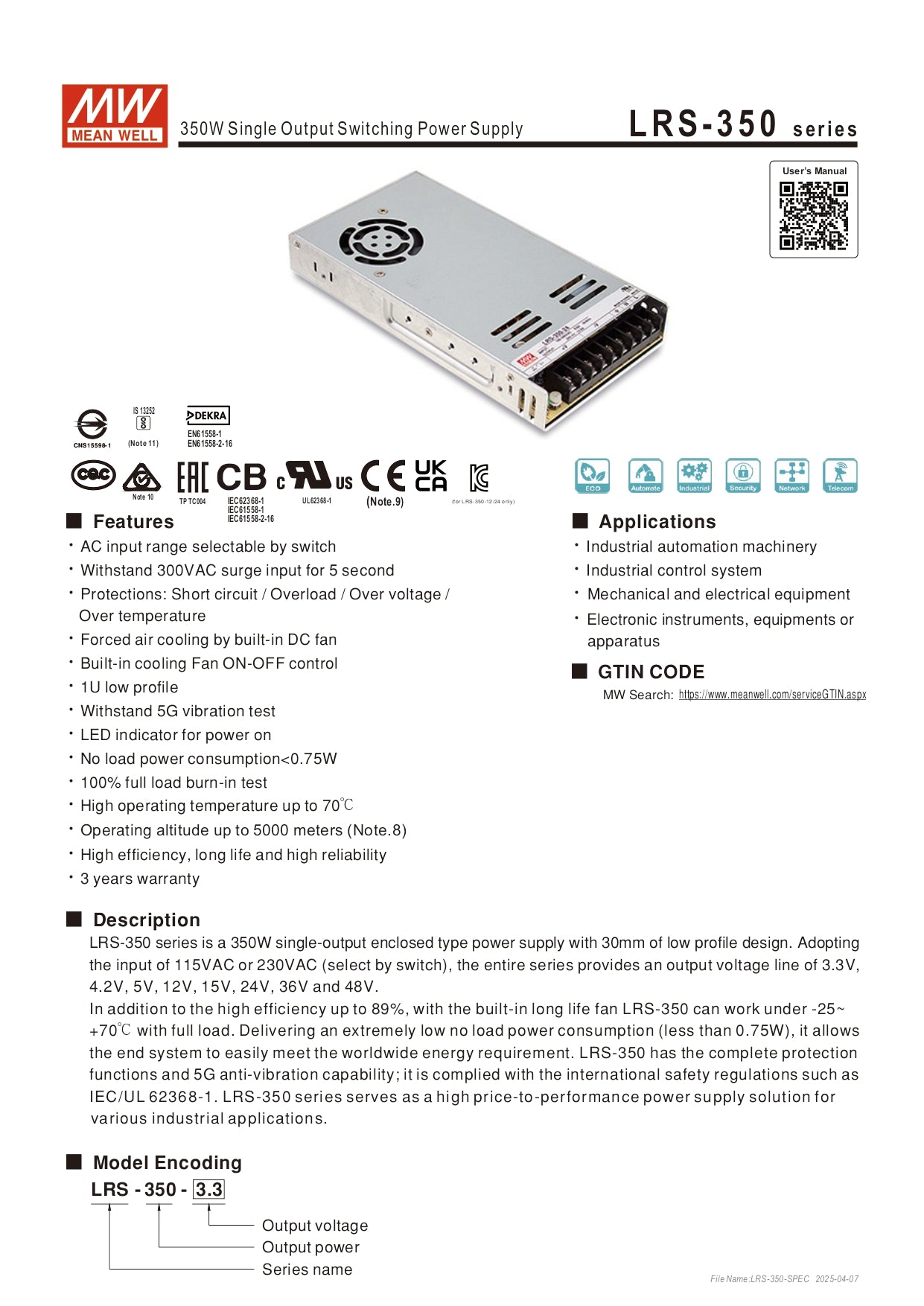

LRS-350 series is a 350W single-output enclosed type power supply with 30 mm low-profile design. Adopting the input of 115VAC or 230VAC(selectable by switch), the entire series provides an output voltage line of 3.3V, 4.2V, 5V, 12V, 15V, 24V, 36V and 48V.
Features/Specs:
Manufacturer Part No: LRS-350-24
Manufacturer: MEAN WELL
Product Category: Switching Power Supplies
Number of Outputs: 1 Output
Output Voltage: 24 VDC
Output Current: 14.6 A
Output Power: 350.4 W
Open Frame/Enclosed: Enclosed
Input Voltage: 100 ~12VAC @6.8A, 200~24VAC @3.4A
Input Frequency: 50 Hz to 60 Hz
Industry: Commercial
Isolation Voltage: 3 kV
Mounting Style: Chassis
RoHS Compliant
Application:
Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipment, or apparatus.
Package Includes:
1 x LRS-350-24 – 24V 14.6A 350.4W MeanWell SMPS Metal Power Supply
Note :- Product Images are shown for illustrative purposes only and may differ from the actual product.
Brand/Manufacturer :- MEAN WELL Enterprises Co. Ltd.
Subject :- All Disputes Subject to Delhi Jurisdiction Only.
Weight :- Upto ~1 kg
