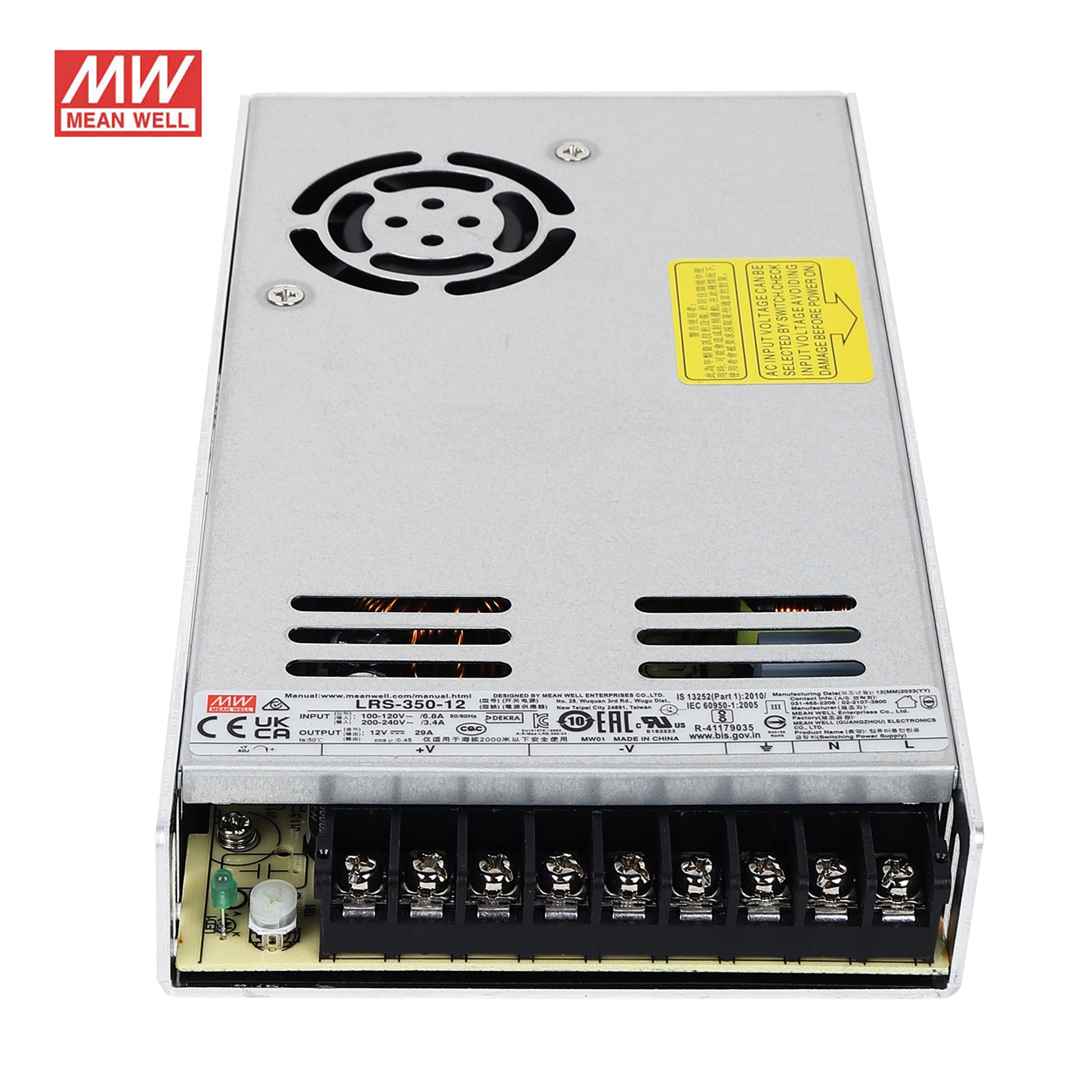

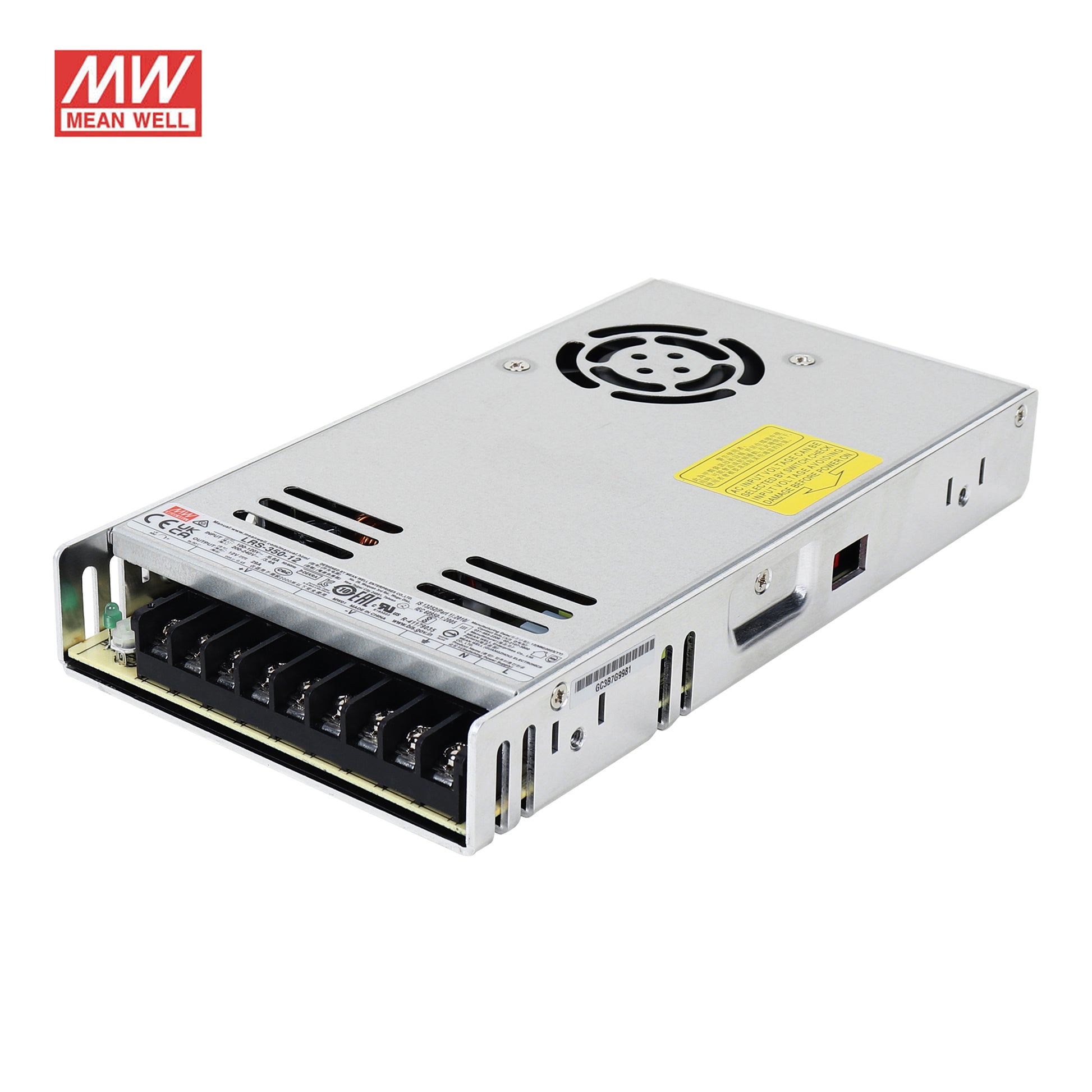

LRS-350-12 – 12V 29A 348W MeanWell SMPS Metal Power Supply - ( SKU:35012 )

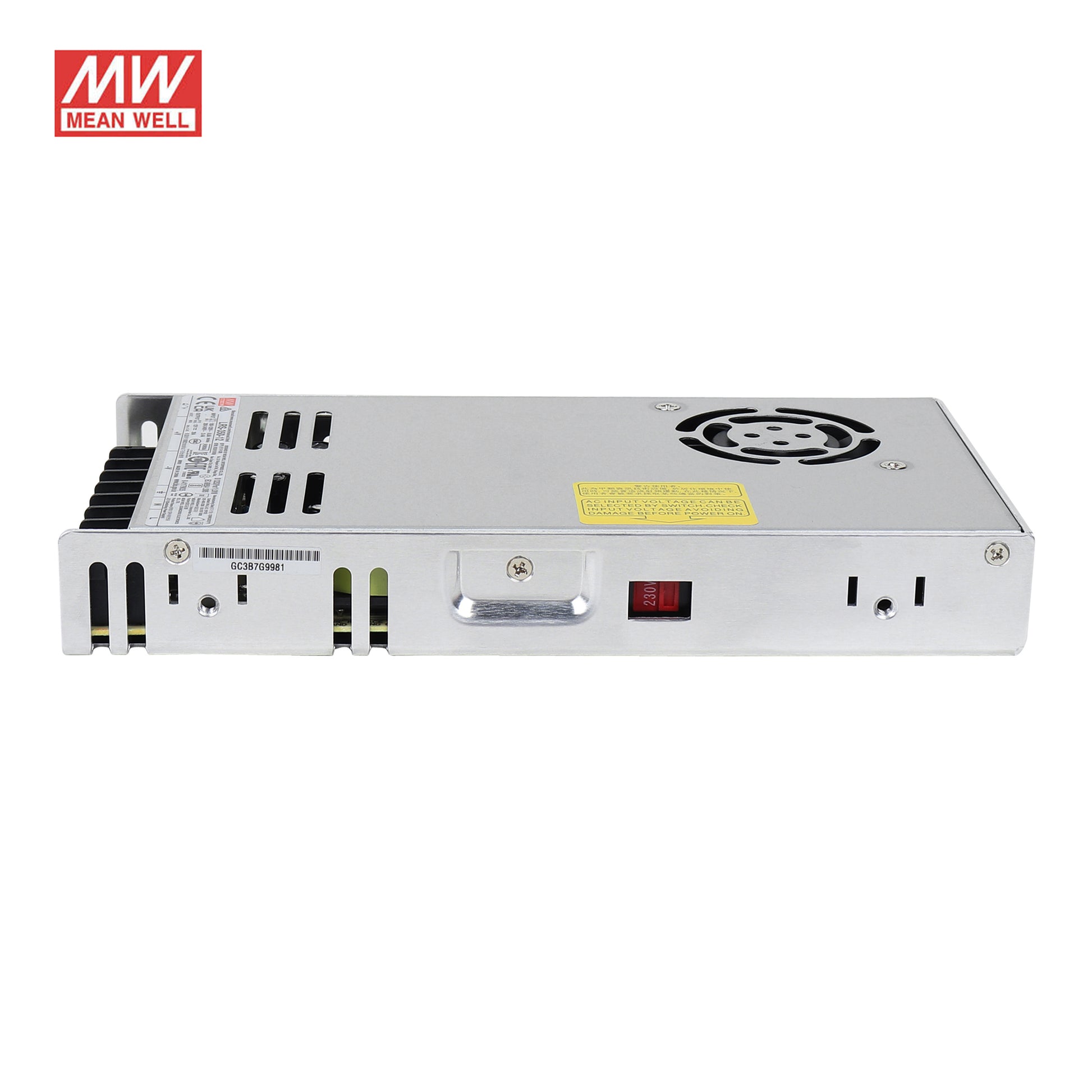

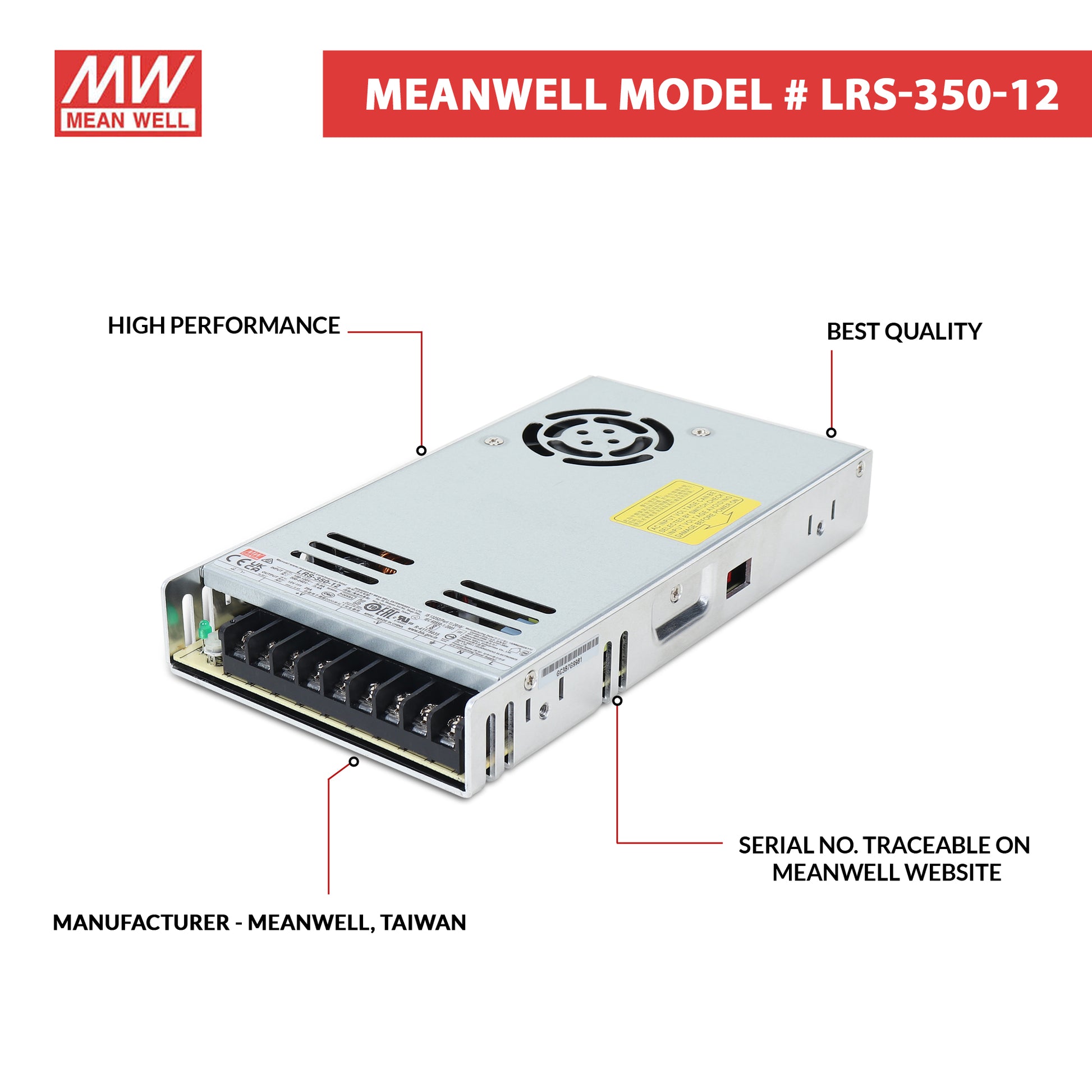

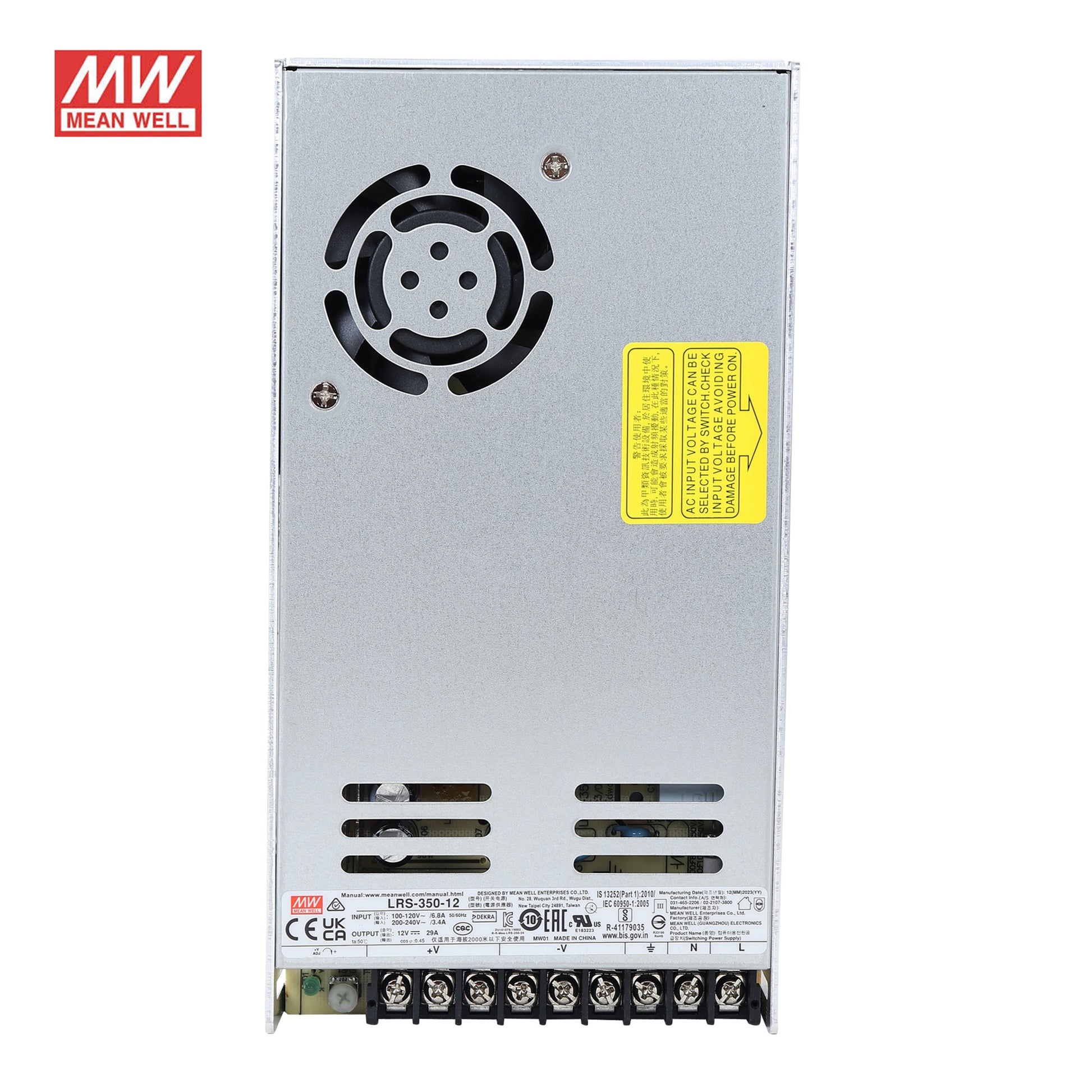

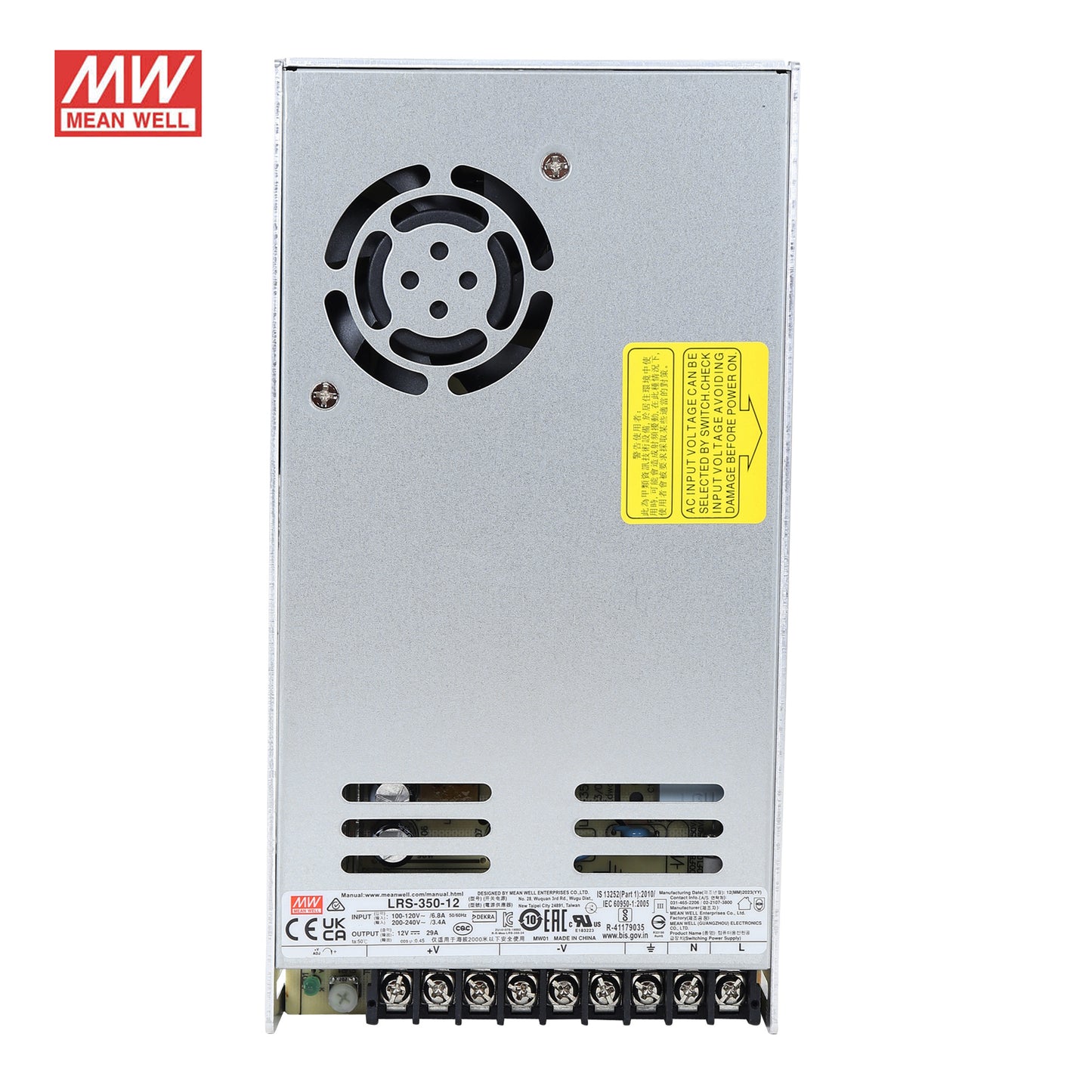

LRS-350-12 – 12V 29A 348W MeanWell SMPS Metal Power Supply

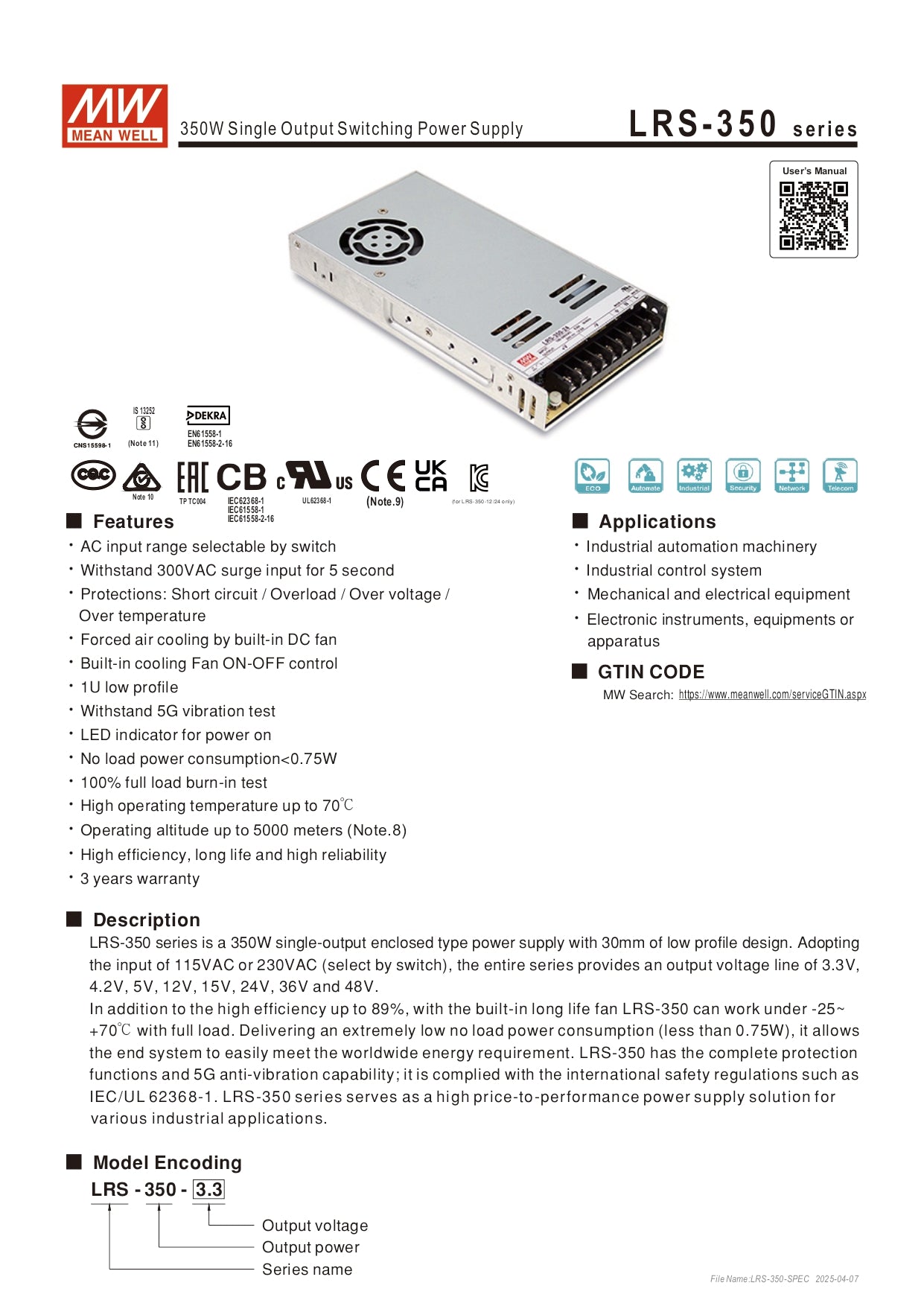

LRS-350 series is a 350W single-output enclosed type power supply with 30mm of low profile design. Adopting the input of 115VAC or 230VAC (select by switch), the entire series provides an output voltage line of 3.3V, 4.2V, 5V, 12V, 15V, 24V, 36V and 48V.

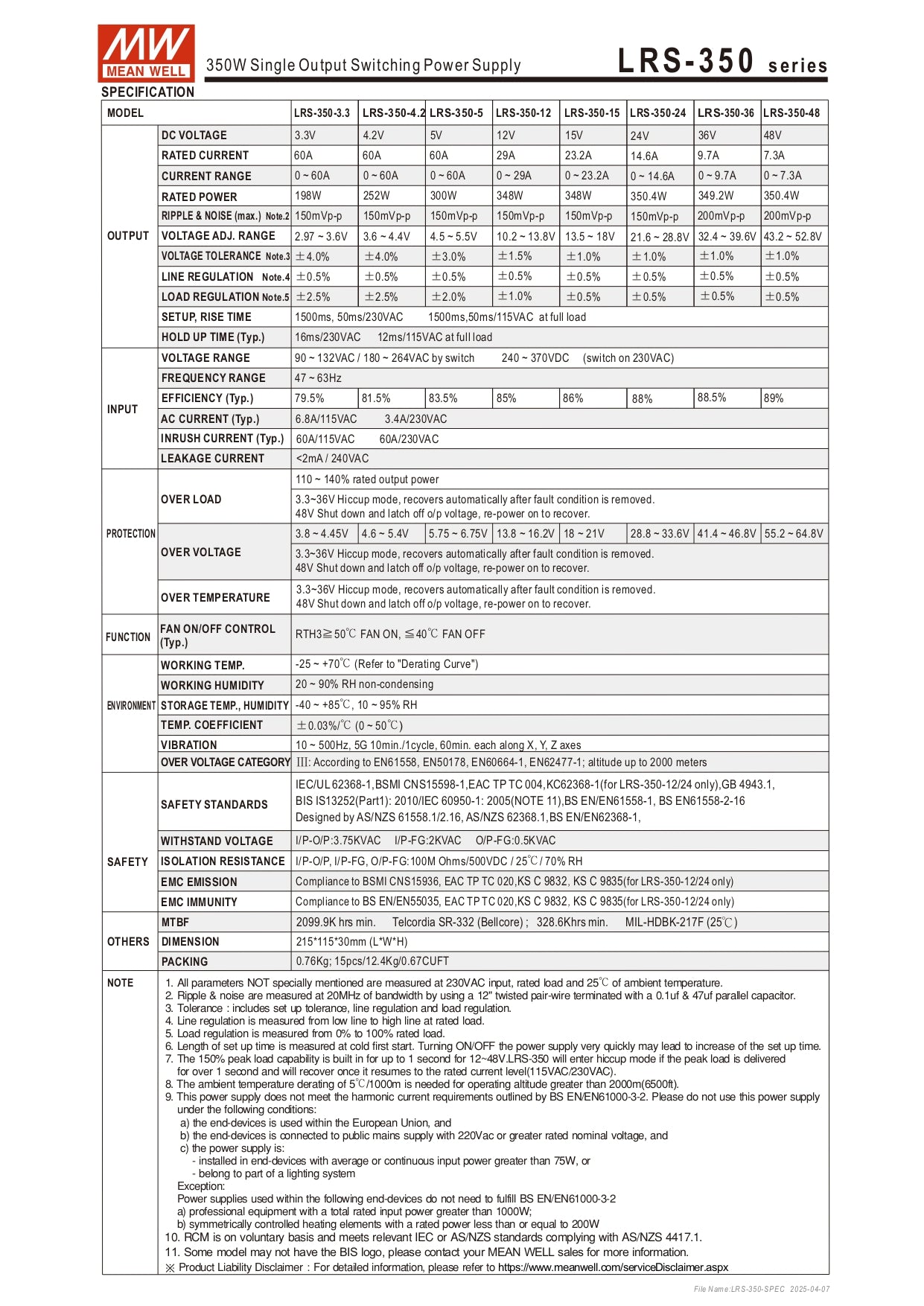

Features/Specs:

• Manufacturer Part No: LRS-350-12
• Manufacturer: MEAN WELL
• Series: LRS-350
• Input Voltage Range:
• Input Frequency: 47 Hz to 63 Hz
• Number of Outputs: 1 Output
• Output Voltage: 12VDC
• Adjustment Range: ±10% by potentiometer
• Output Current: 29A
• Output Power: 348 W
• Isolation Voltage: 3 kV
• Working temperature Range: -25 ~ +70°C
• RoHS Compliant
• Mounting Style: Chassis

Application:

• Industrial automation machinery
• Industrial control system
• Mechanical and electrical equipment
• Electronic instruments, equipment, or apparatus.

Package Includes:

• 1 x LRS-350-12 – 12V 29A 348W MeanWell SMPS Metal Power Supply

Note :- Product Images are shown for illustrative purposes only and may differ from actual product.
