LRS-50-24 – 24V 2.2A 52.8W MeanWell SMPS Metal Power Supply - ( SKU:5024 )

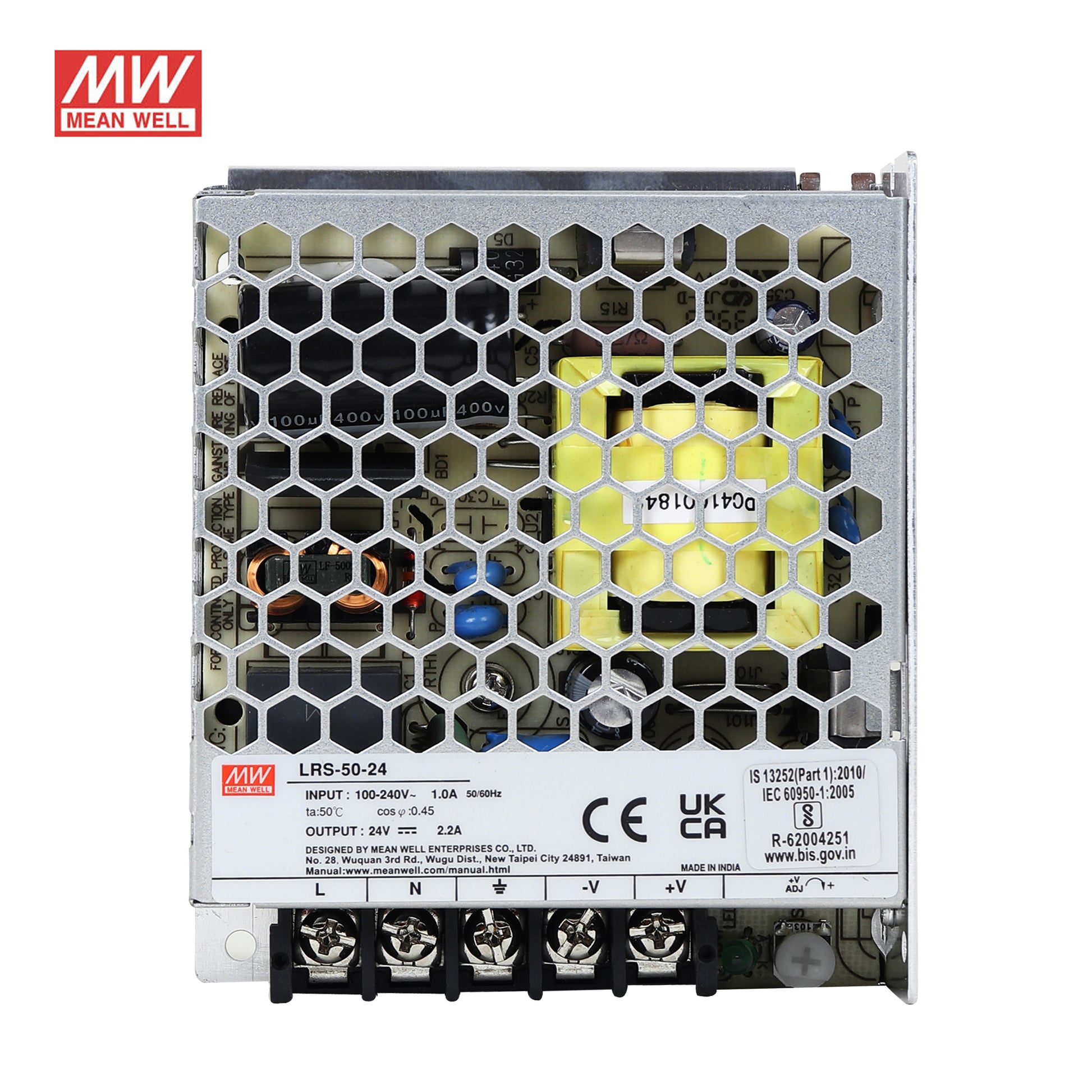

LRS-50-24 – 24V 2.2A 52.8W MeanWell SMPS Metal Power Supply

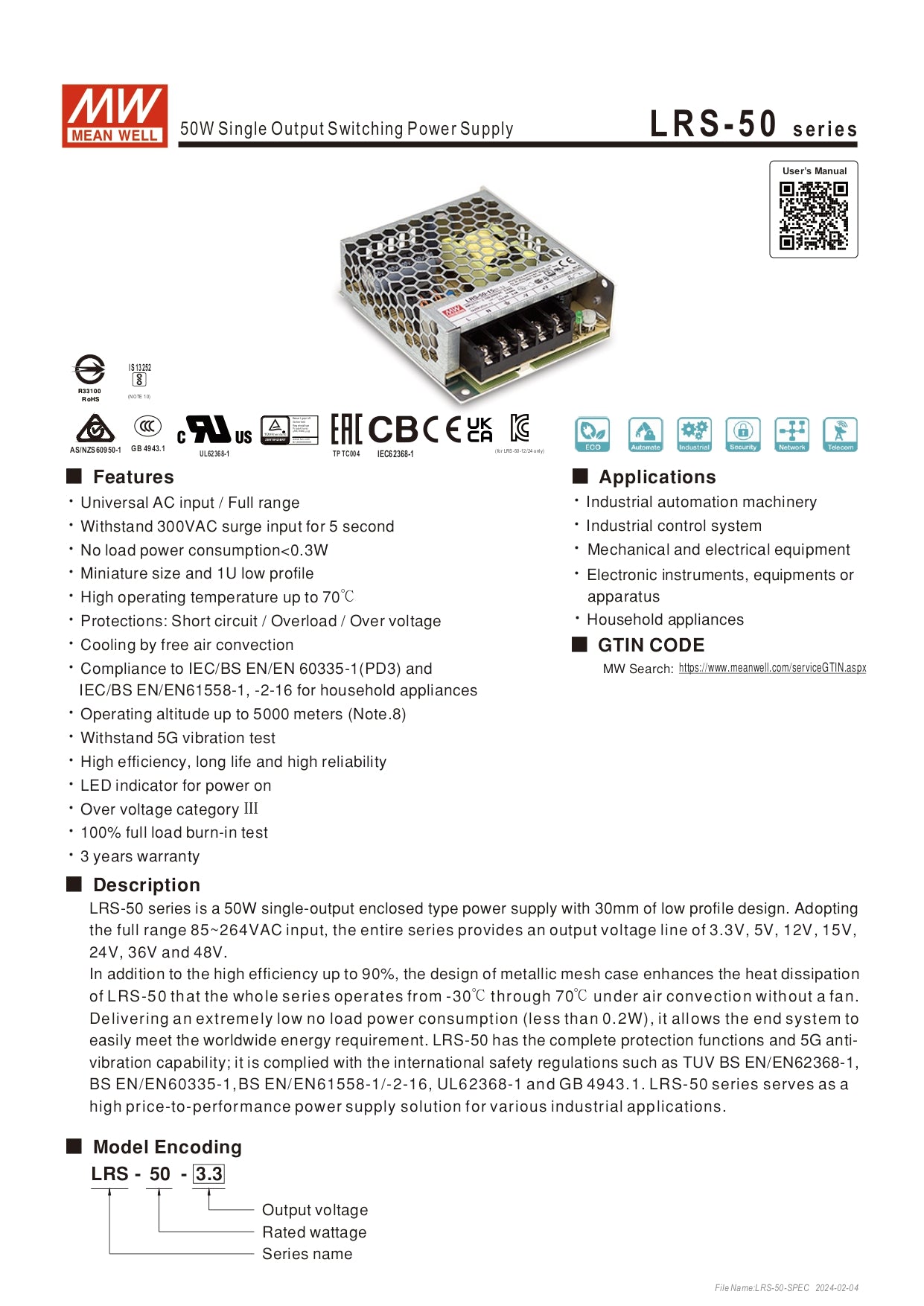

LRS-50 series is a 50W single-output enclosed type power supply with 30mm of low profile design. Adopting the full range 85VAC ~ 264VAC input, the entire series provides an output voltage line of 3.3V, 5V, 12V, 15V, 24V, 36V and 48V

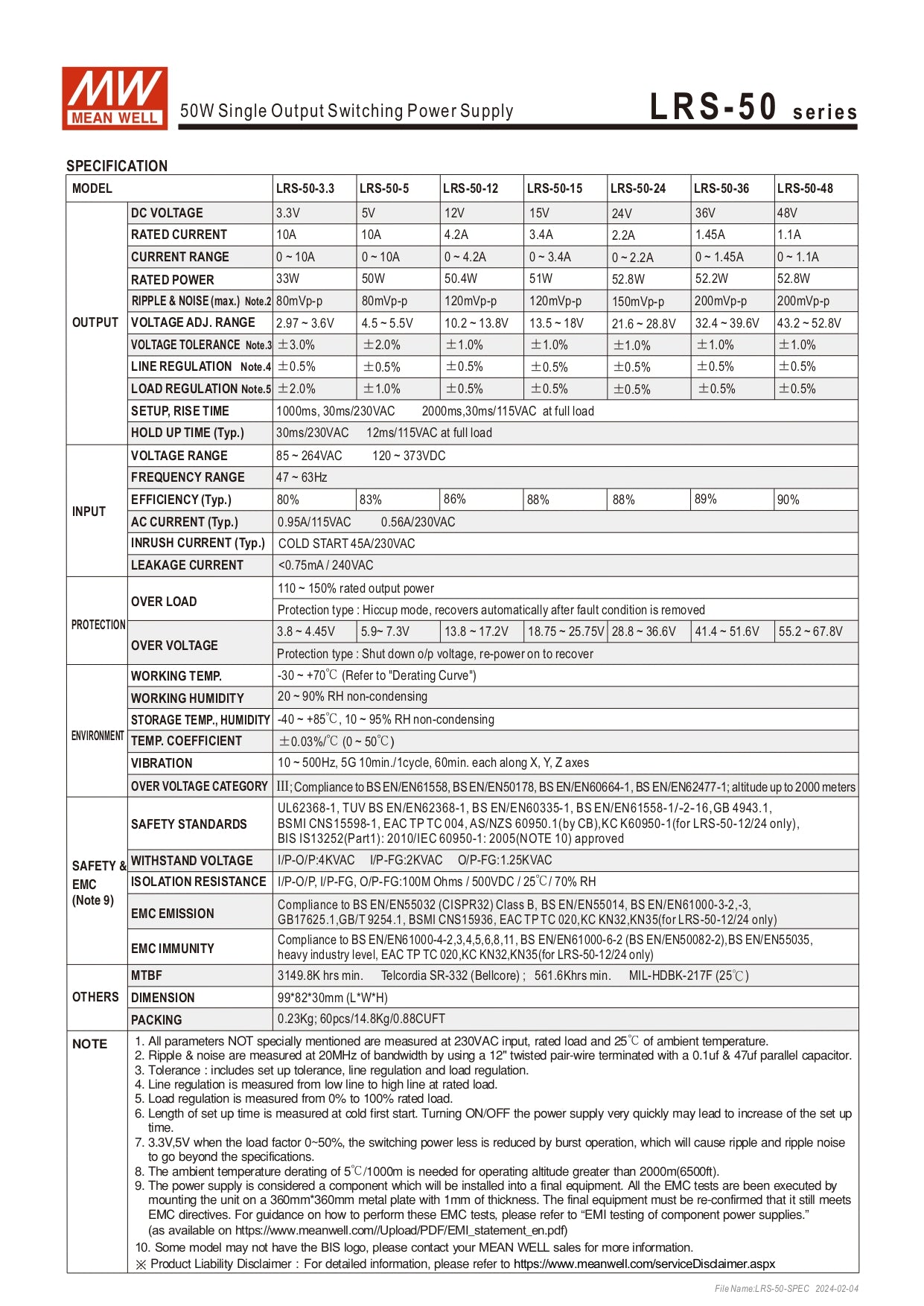

Features/Specs:

• Manufacturer Part No: LRS-50-24
• Manufacturer: MEAN WELL
• Series: LRS-50
• Product Type: Switching Power Supplies
• Input Voltage Range: 100VAC to 240VAC
• Input Frequency: 47Hz to 63Hz
• Number of Outputs: 1 Output
• Output Voltage-Channel 1:24 VDC
• Output Current: 2.2A
• Output Power: 52.8 W
• Open Frame/Enclosed: Enclosed
• RoHS Compliant
• Mounting Style: Panel

Application:

• Industrial automation machinery
• Industrial control system
• Mechanical and electrical equipment
• Electronic instruments, equipment, or apparatus.

Package Includes:

• 1 x LRS-50-24 – 24V 2.2A 52.8W MeanWell SMPS Metal Power Supply

Note :- Product Images are shown for illustrative purposes only and may differ from the actual product.
