LRS-50-5 – 5V 10A 50W MeanWell SMPS Metal Power Supply - ( SKU:505 )

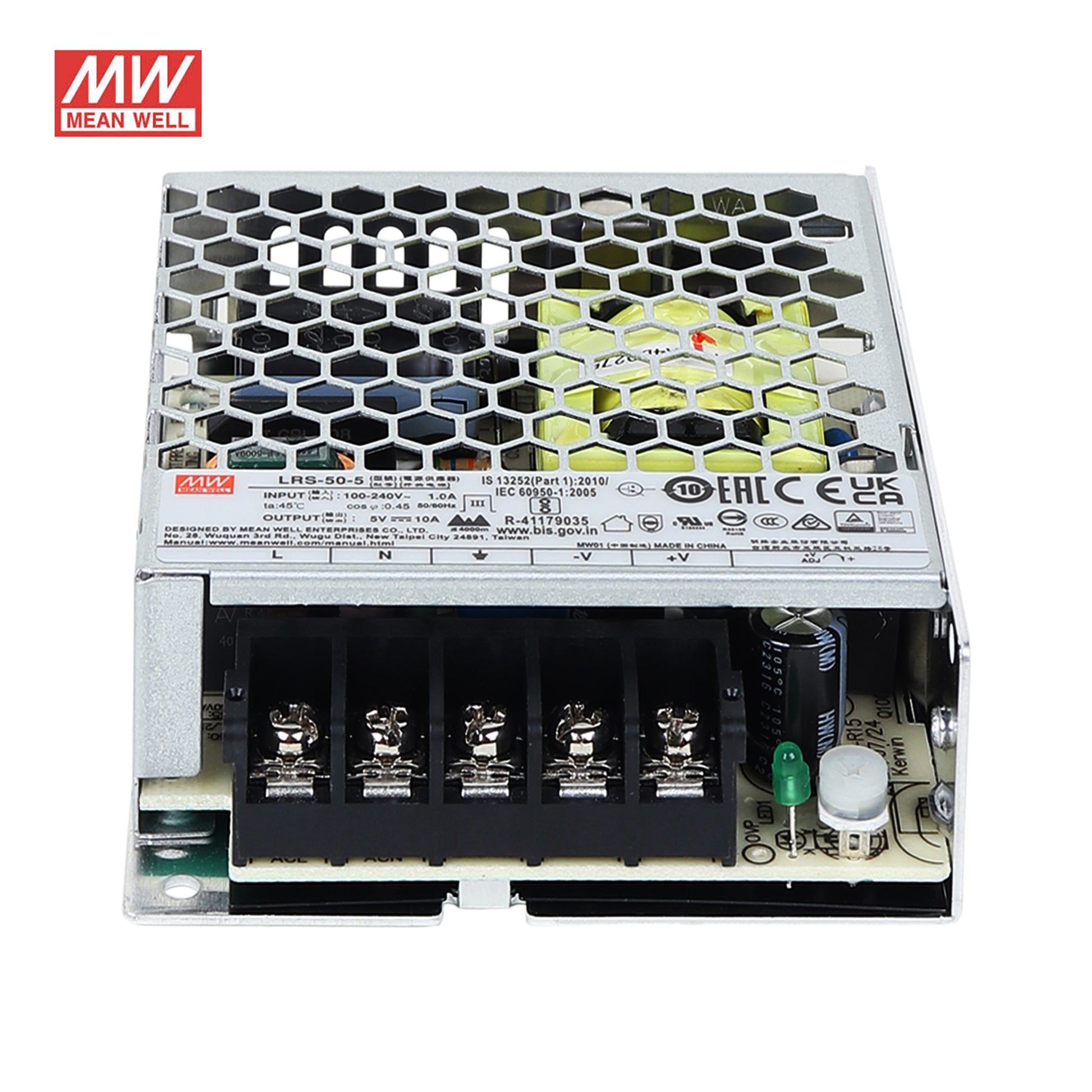

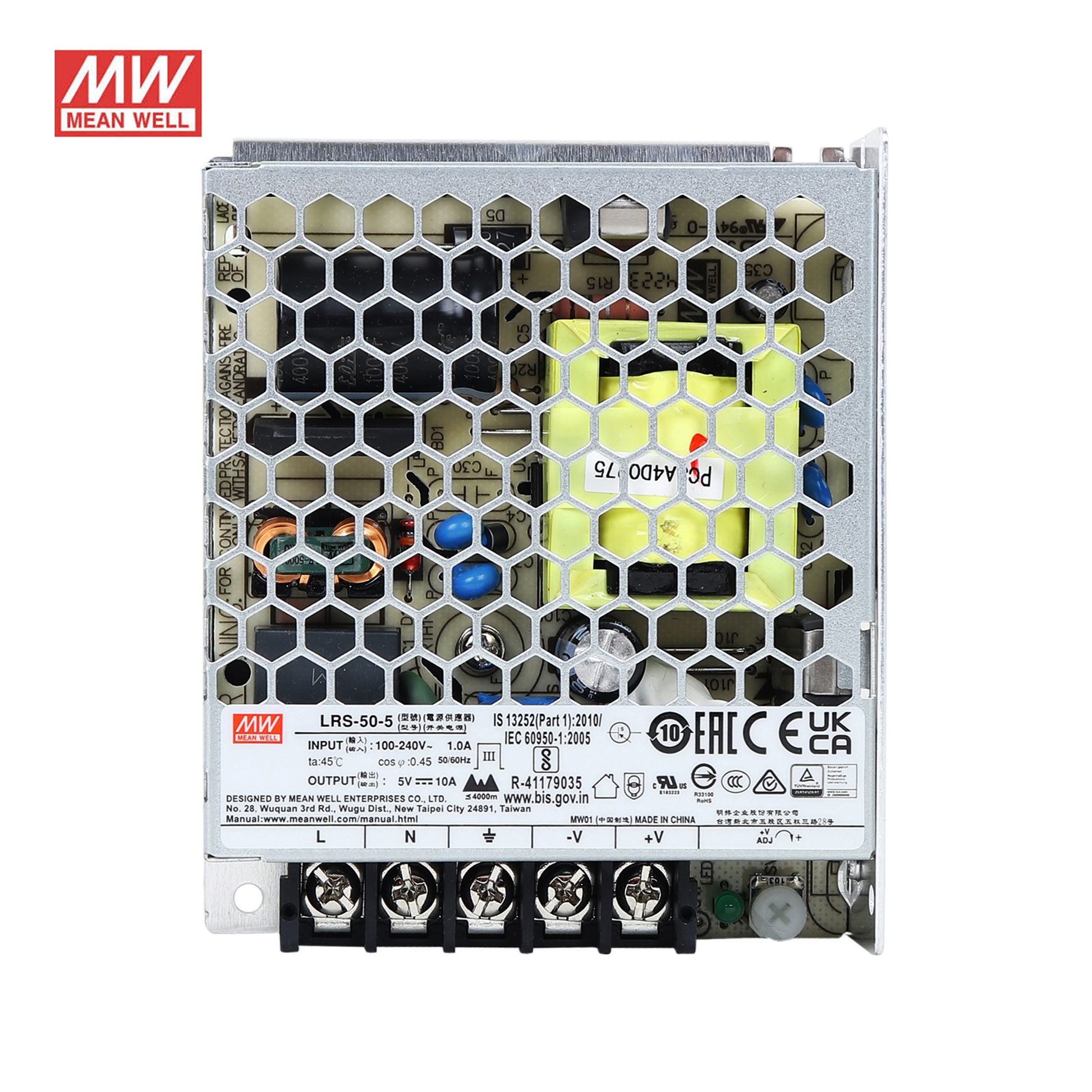

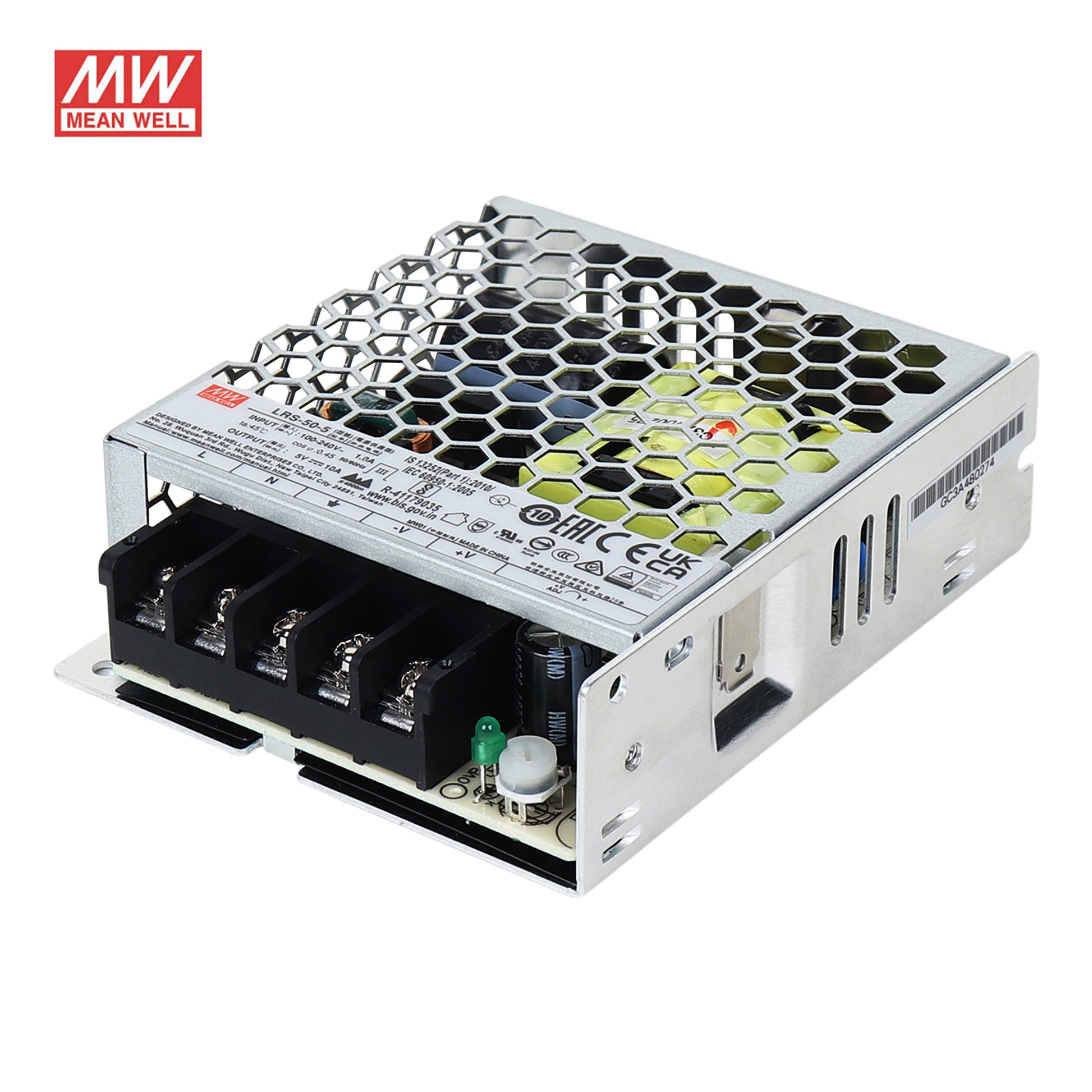

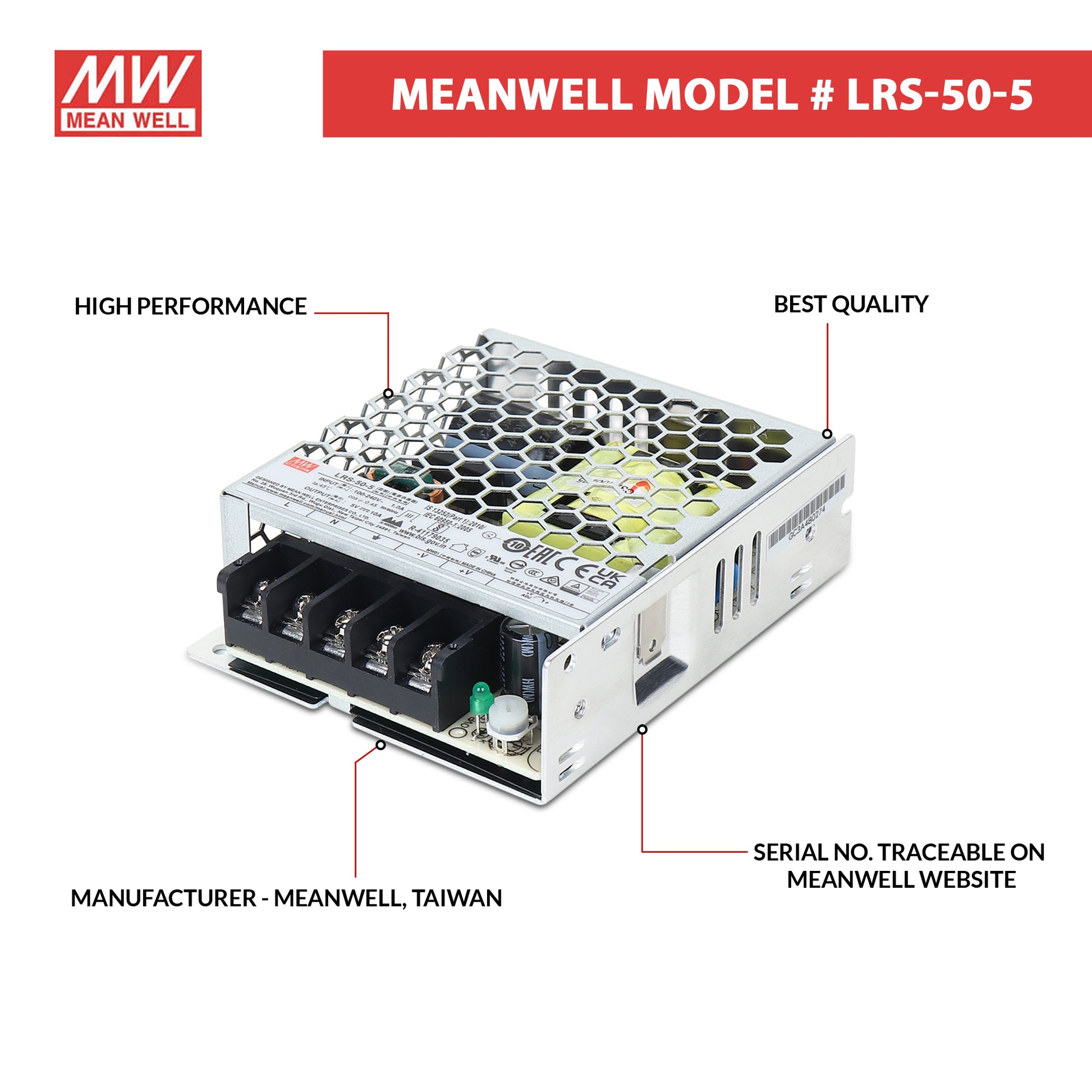

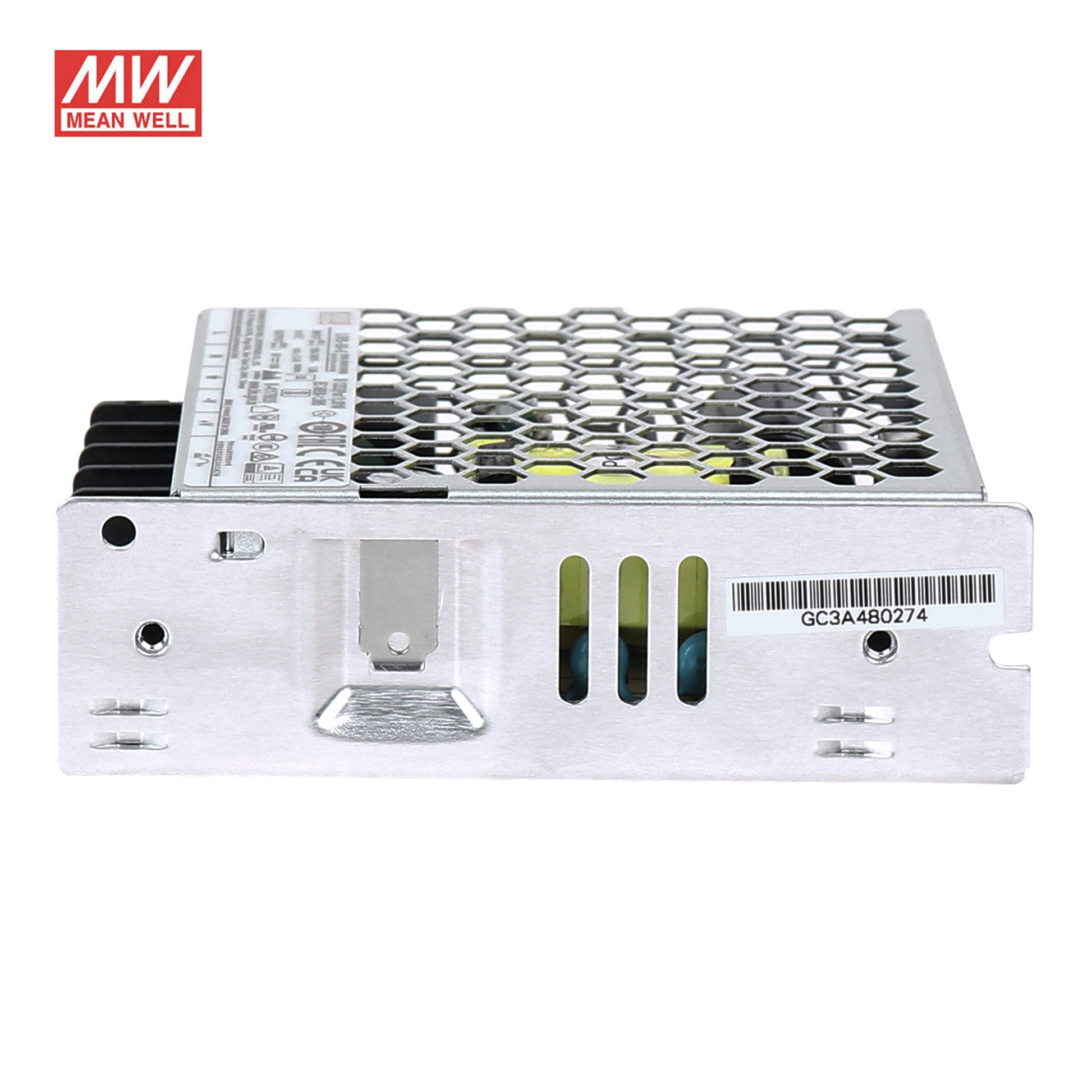

LRS-50-5 – 5V 10A 50W MeanWell SMPS Metal Power Supply

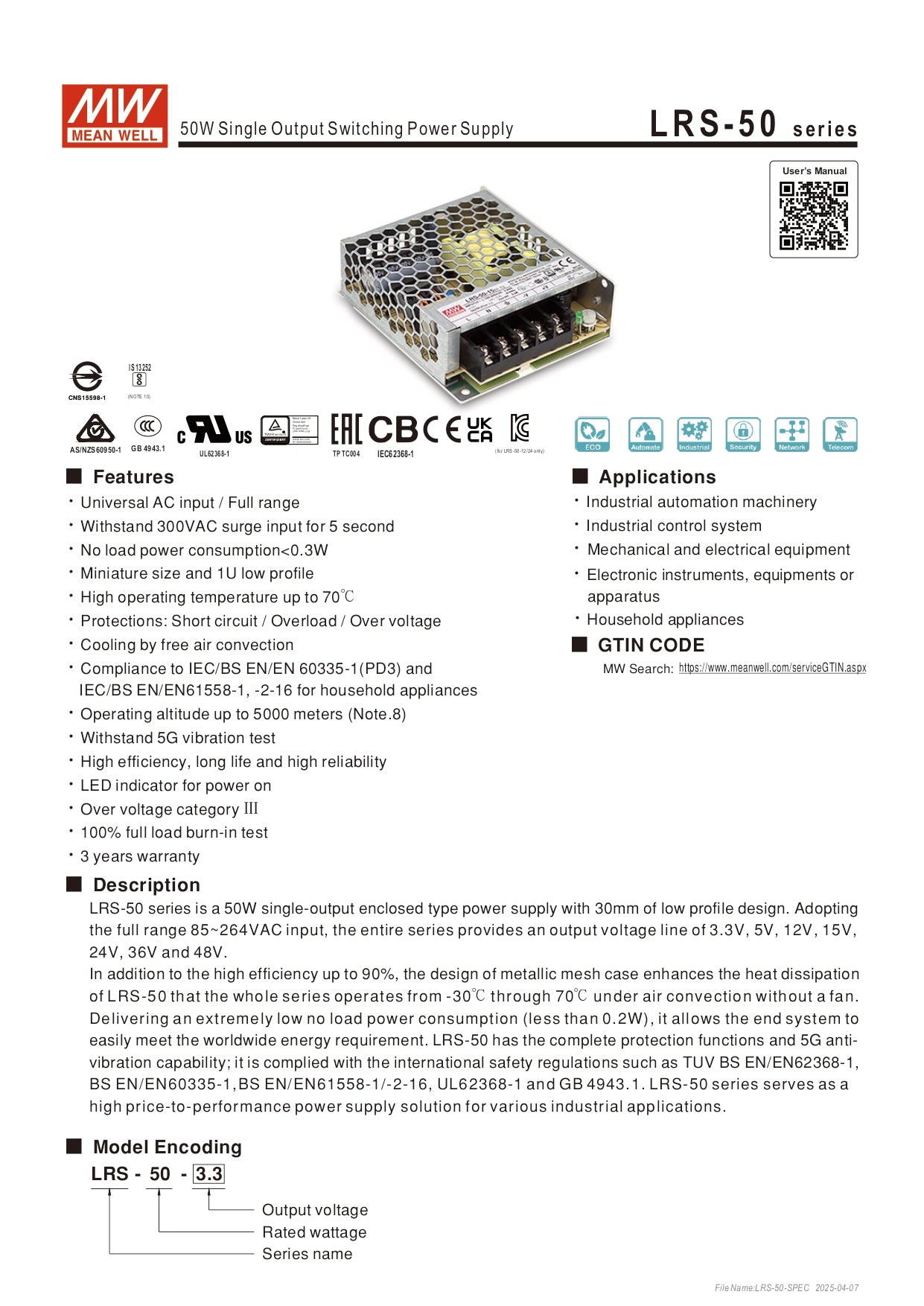

LRS-50 series is a 50W single-output enclosed type power supply with 30mm of low profile design. Adopting the full range 85VAC ~ 264VAC input, the entire series provides an output voltage line of 3.3V, 5V, 12V, 15V, 24V, 36V and 48V.

Features/Specs:

• Manufacturer Part No: LRS-50-5
• Series: LRS-50
• Manufacturer: MEAN WELL
• Open Frame/Enclosed: Enclosed
• Input Voltage: 85 VAC to 264 VAC, 120 VDC to 373 VDC
• Input Frequency: 47 Hz to 63 Hz
• Output Voltage: 5 VDC
• Number of Outputs: 1 Output
• Output Power: 50 Watts
• Output Current: 10 A
• Product Category: Switching Power Supplies
• RoHS Compliant
• Mounting Style: Panel

Application:

• Industrial automation machinery
• Industrial control system
• Mechanical and electrical equipment
• Electronic instruments, equipment, or apparatus.

Package includes:

• 1 x LRS-50-5 – 5V 10A 50W MeanWell SMPS Metal Power Supply

Note :- Product Images are shown for illustrative purposes only and may differ from the actual product.
