LRS-200-5 – 5V 40A 200W MeanWell SMPS Metal Power Supply - ( SKU:2005 )

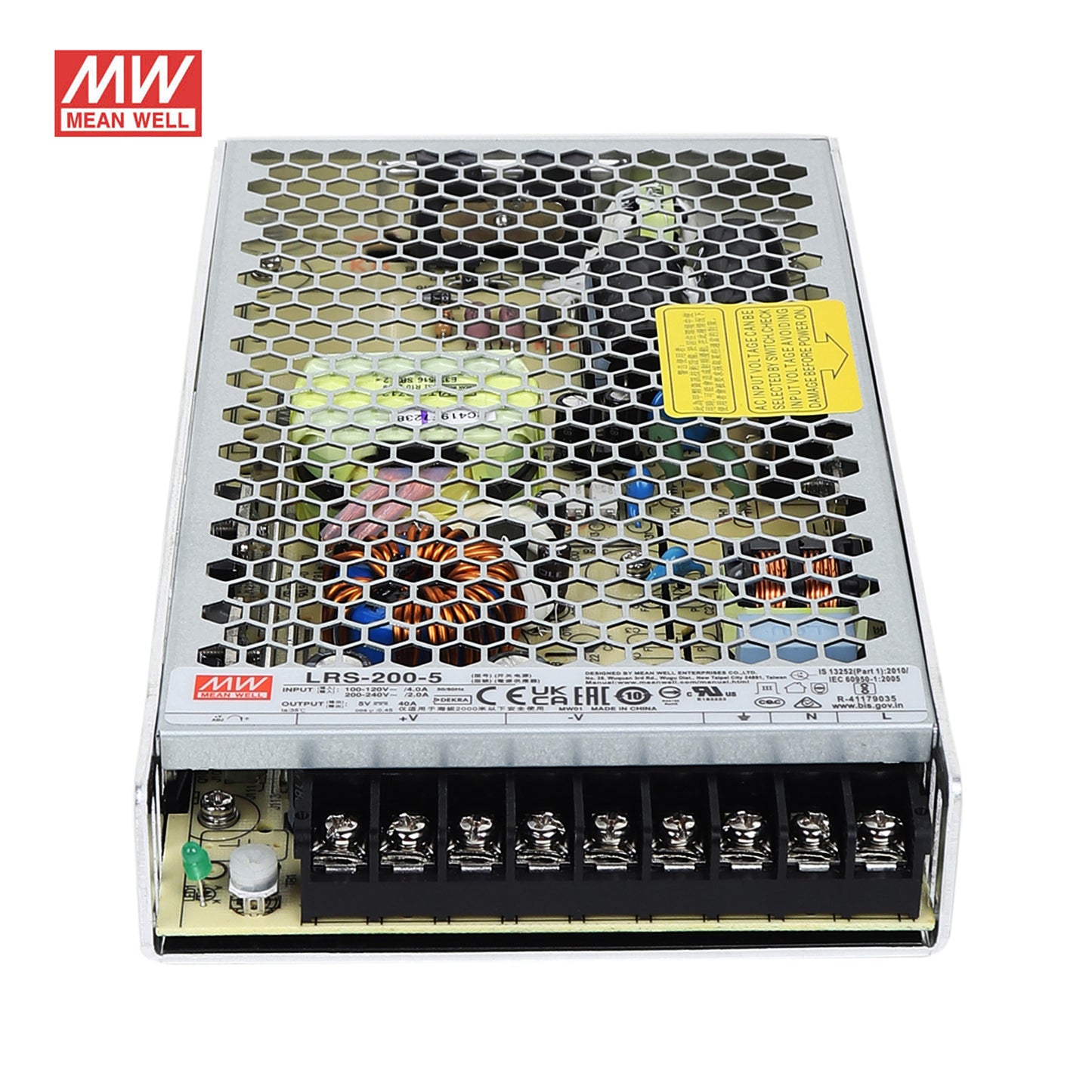

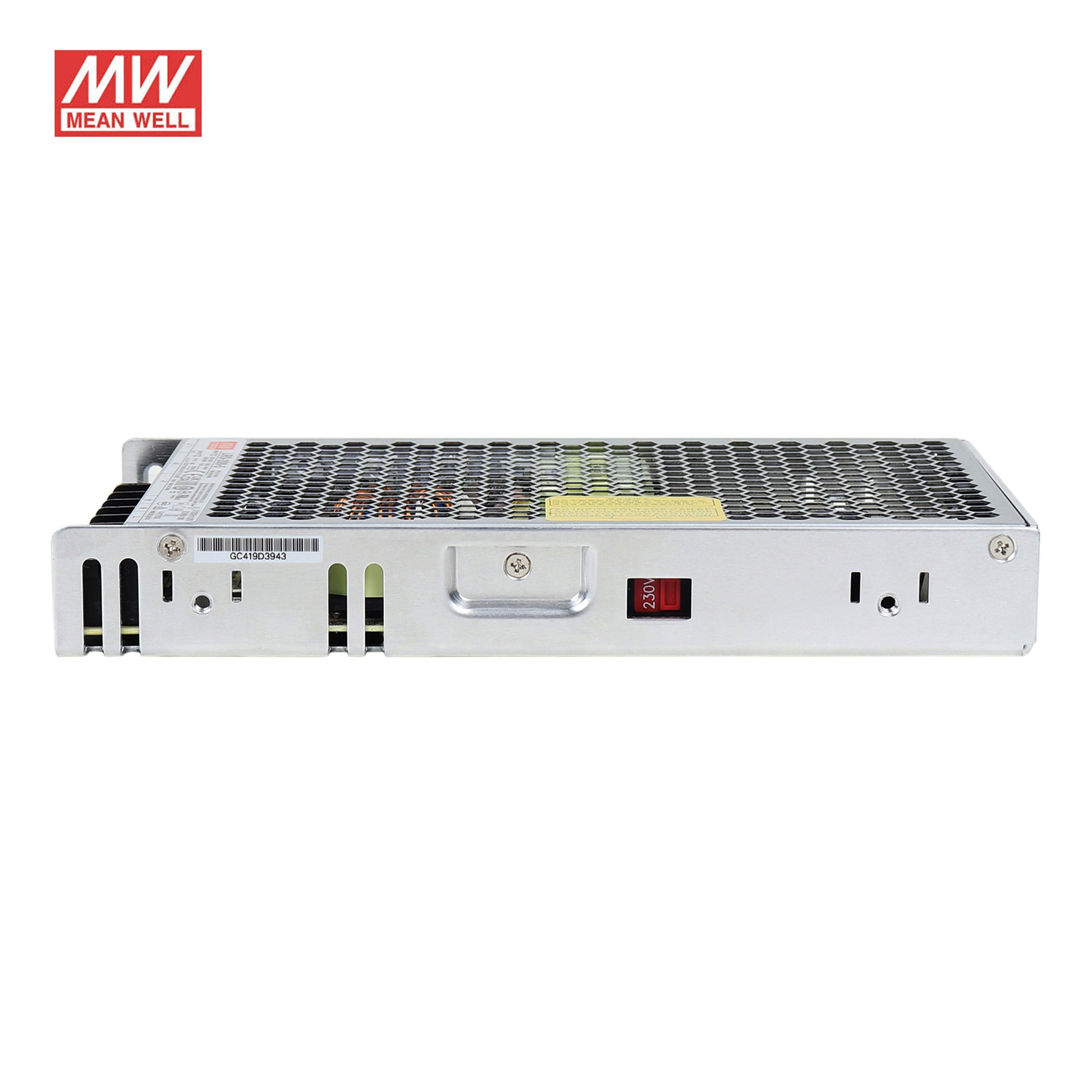

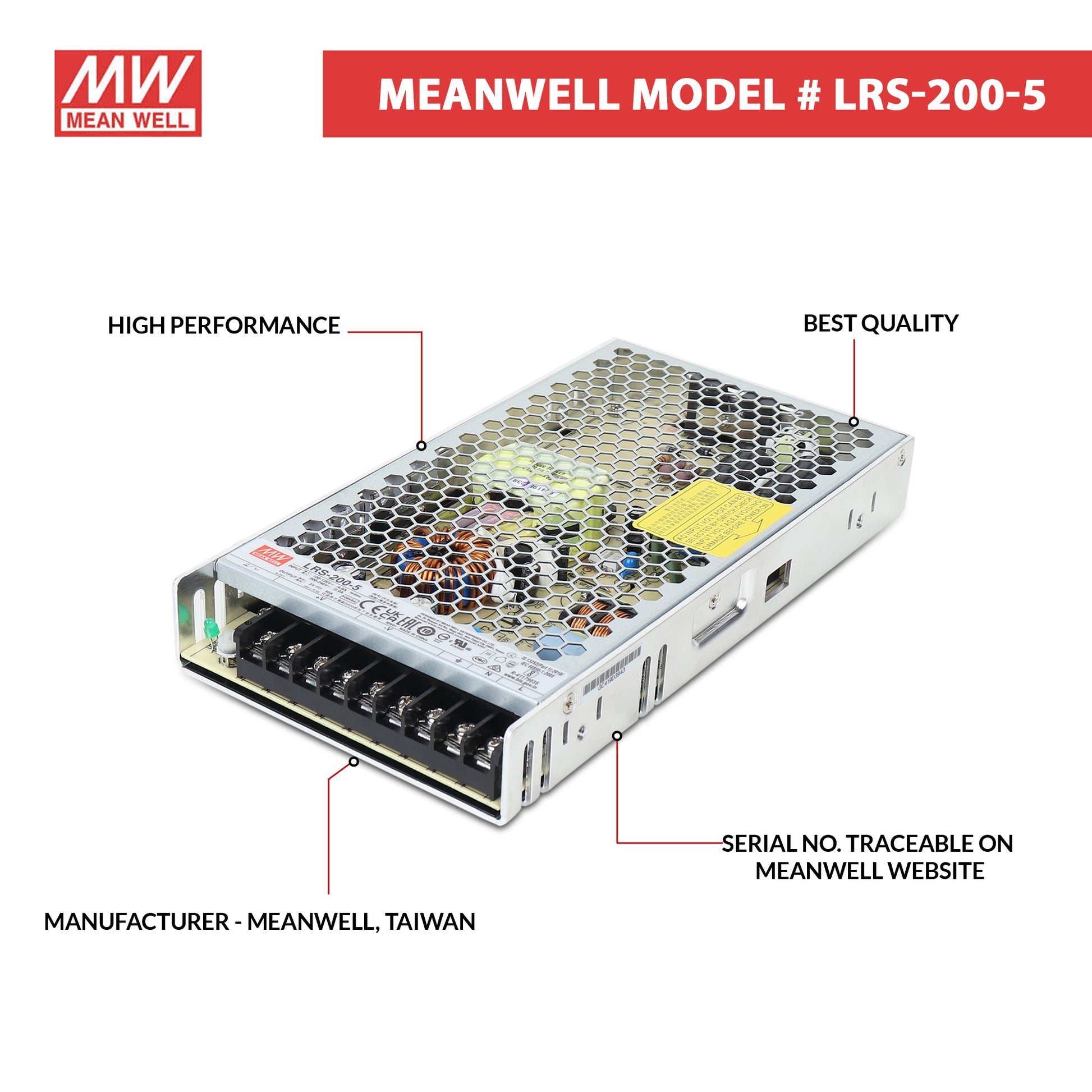

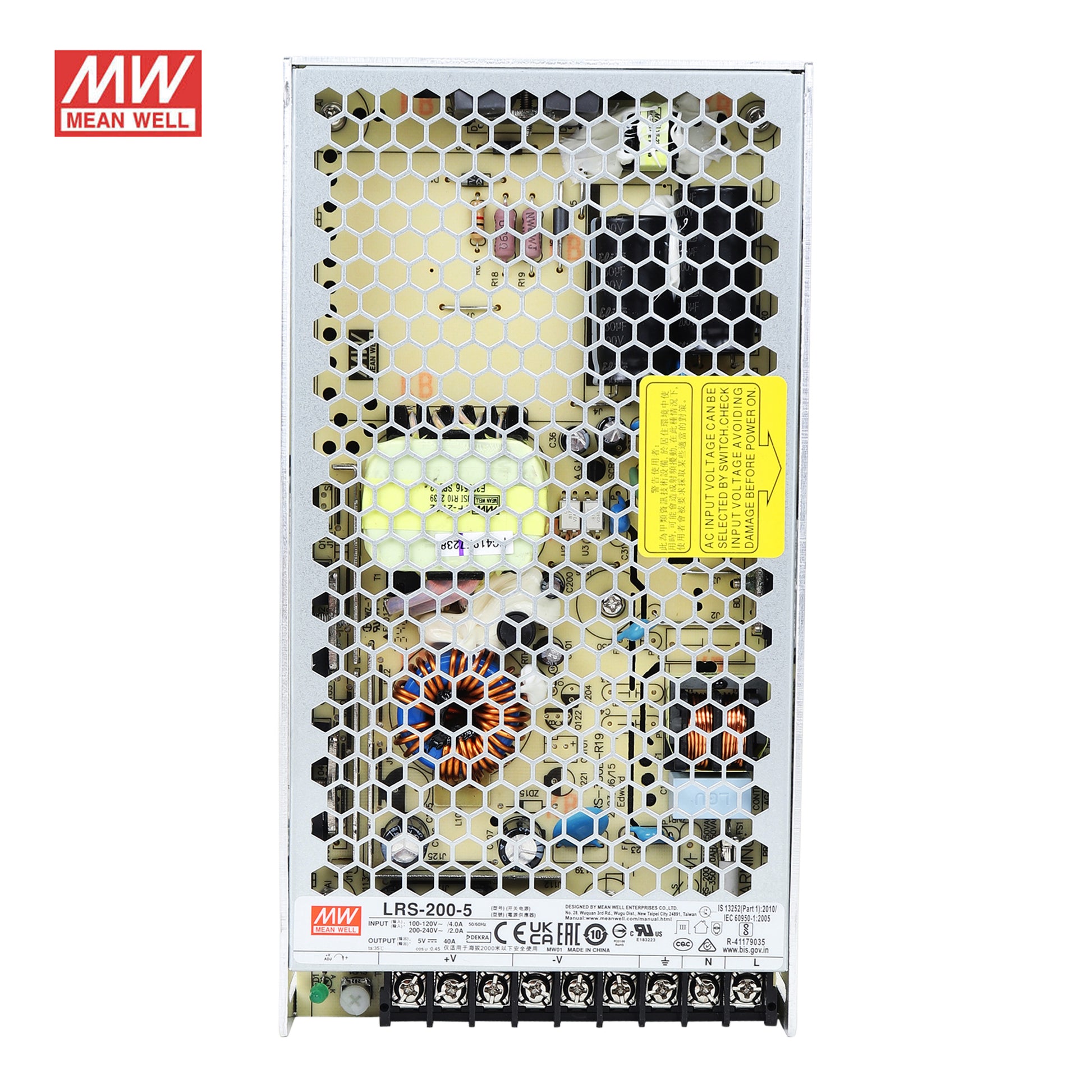

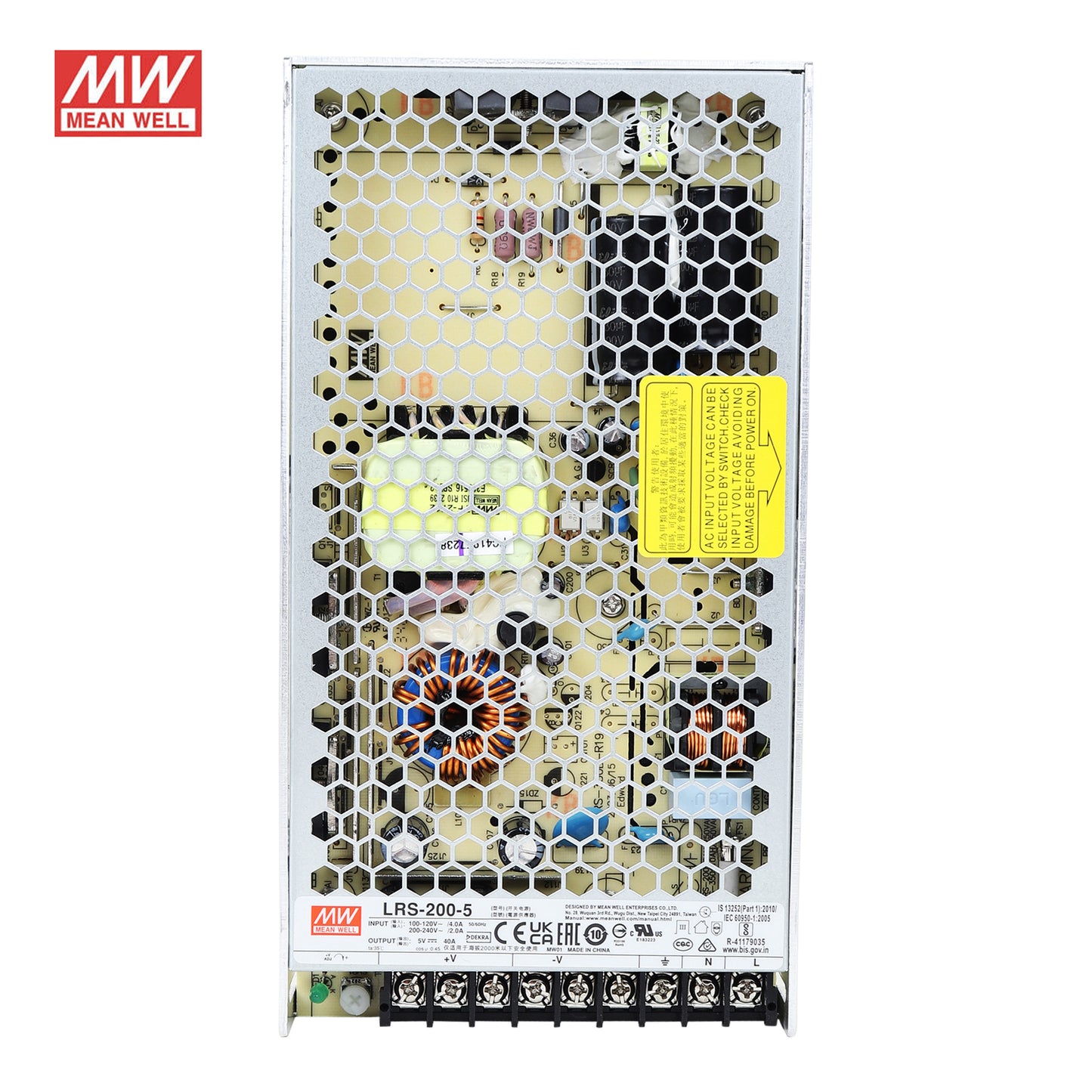

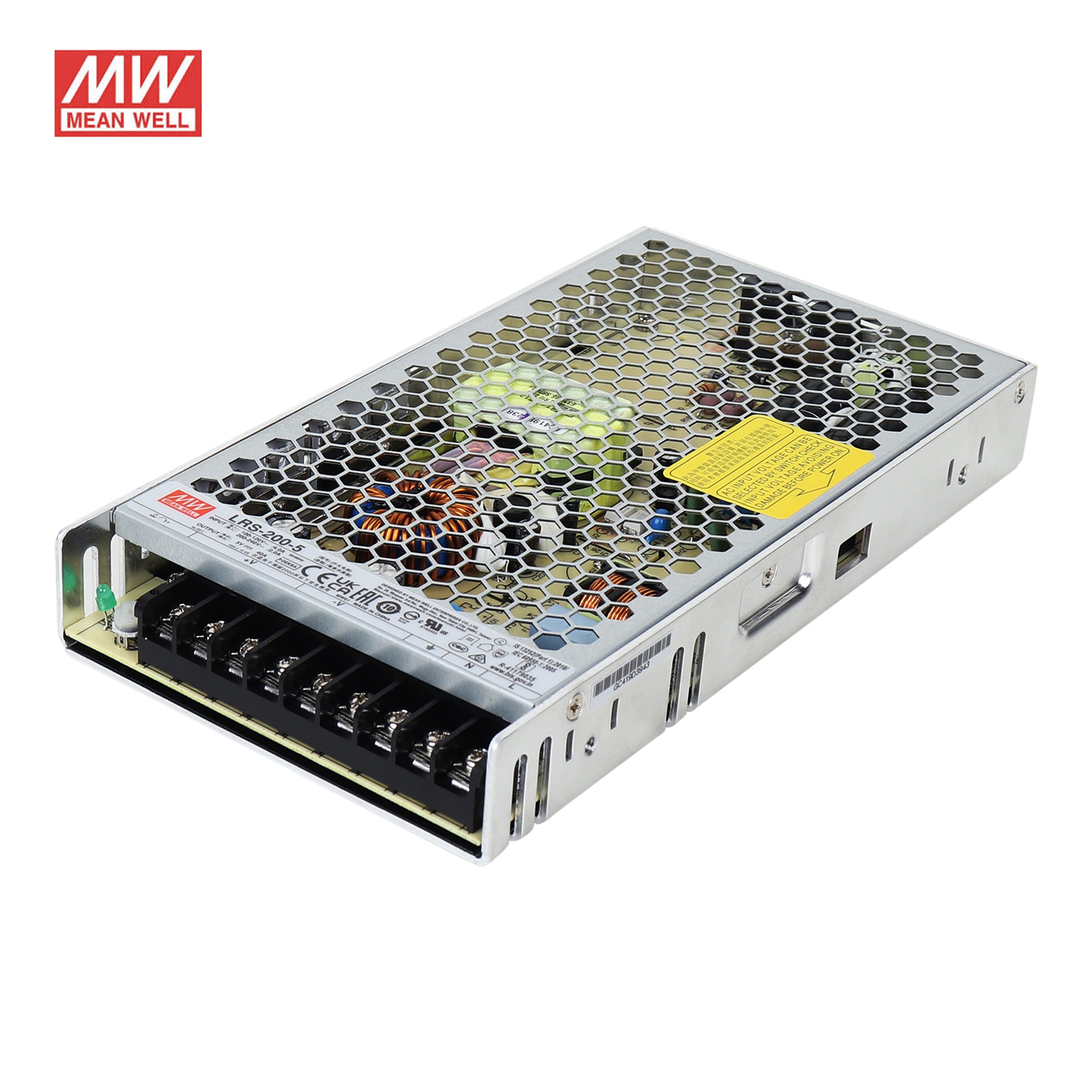

LRS-200-5 – 5V 40A 200W MeanWell SMPS Metal Power Supply

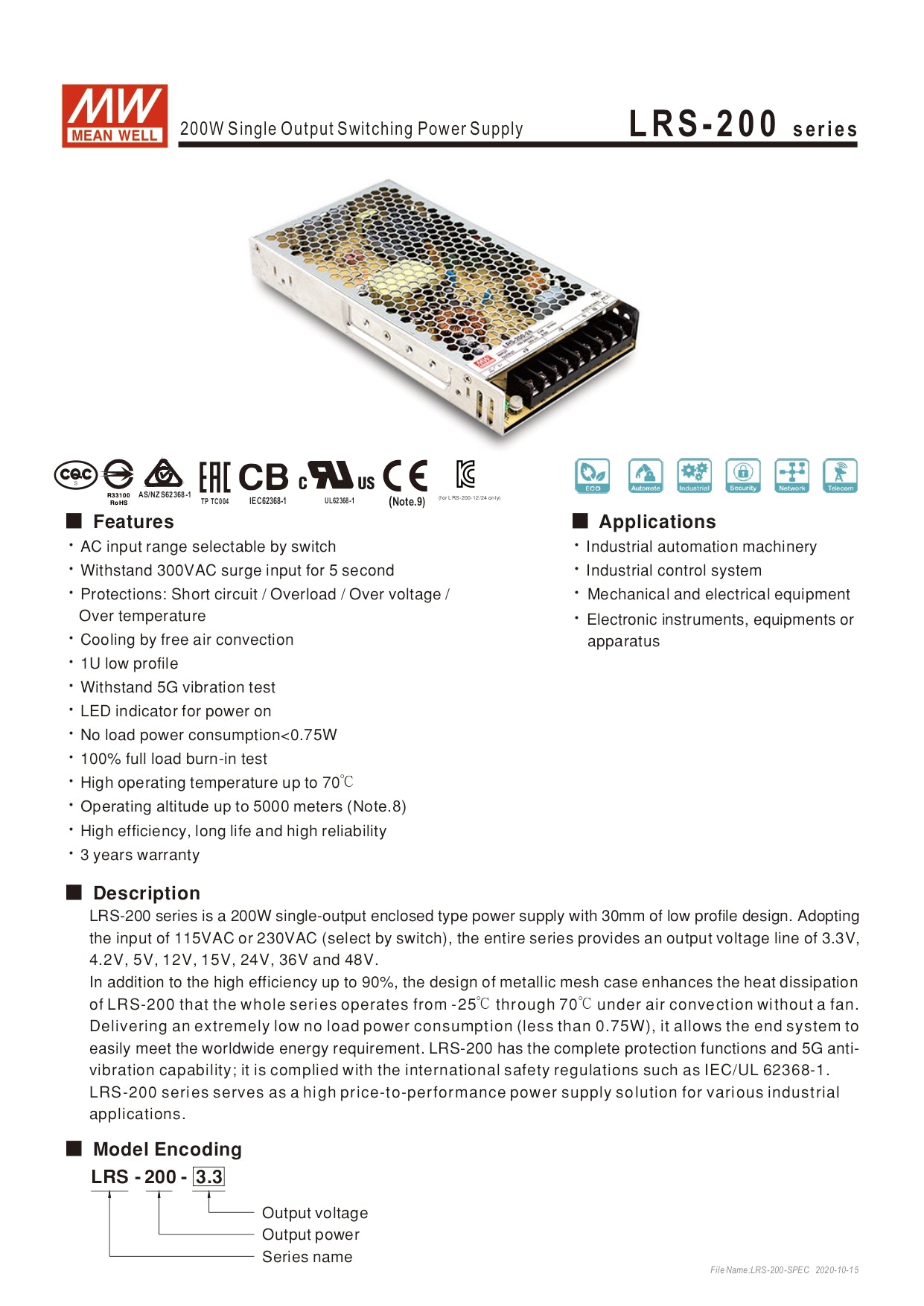

LRS-200 series is a 200W single-output enclosed type power supply with 30mm of low profile design. Adopting the input of 115VAC or 230VAC(selectable by switch), the entire series provides an output voltage line of 3.3V, 4.2V, 5V, 12V, 15V, 24V, 36V, 48V.

Features/Specs:

• Part No: LRS-200-5
• Manufacturer: MEAN WELL
• Product Category: Switching Power Supplies
• RoHS Compliant
• Output Voltage-Channel 1: 5 VDC
• Number of Outputs: 1 Output
• Output Power: 200 W
• Open Frame/Enclosed: Enclosed
• Input Voltage: 90 VAC to 132 VAC, 180 VAC to 264 VAC, 240 VDC to 370 VDC
• Output Current-Channel 1: 40 A
• Industry: Commercial
• Isolation Voltage: 3 kV
• Mounting Style: Chassis
• Series: LRS-200
• Input Frequency: 47 Hz to 63 Hz
• Load Regulation: Regulated
• Subcategory: AC-DC Power Supply

Application:

• Industrial automation machinery
• Industrial control system
• Mechanical and electrical equipment
• Electronic instruments, equipment, or apparatus.

Package Includes:

• 1 x LRS-200-5 – 5V 40A 200W MeanWell SMPS Metal Power Supply

Note :- Product Images are shown for illustrative purposes only and may differ from the actual product.
