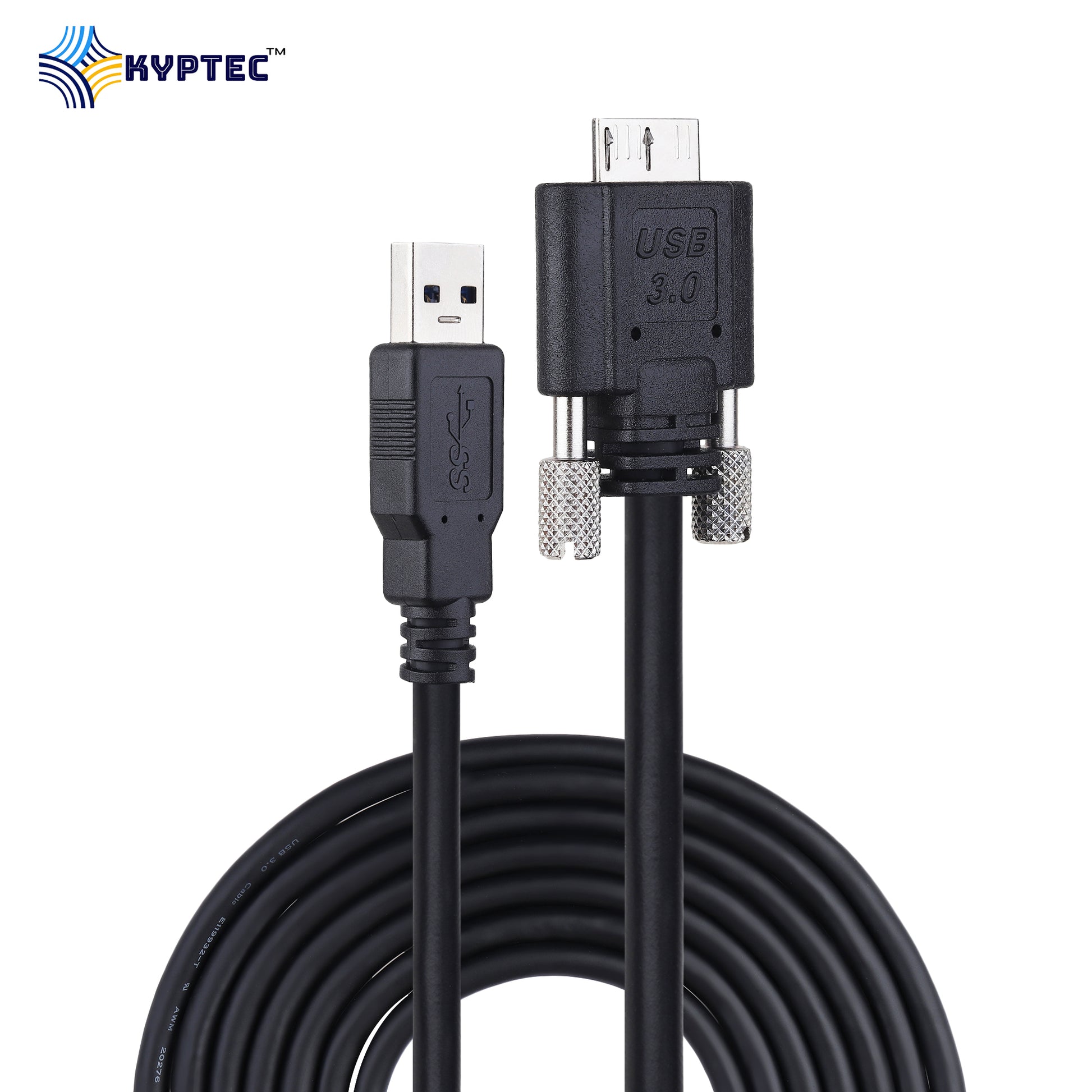

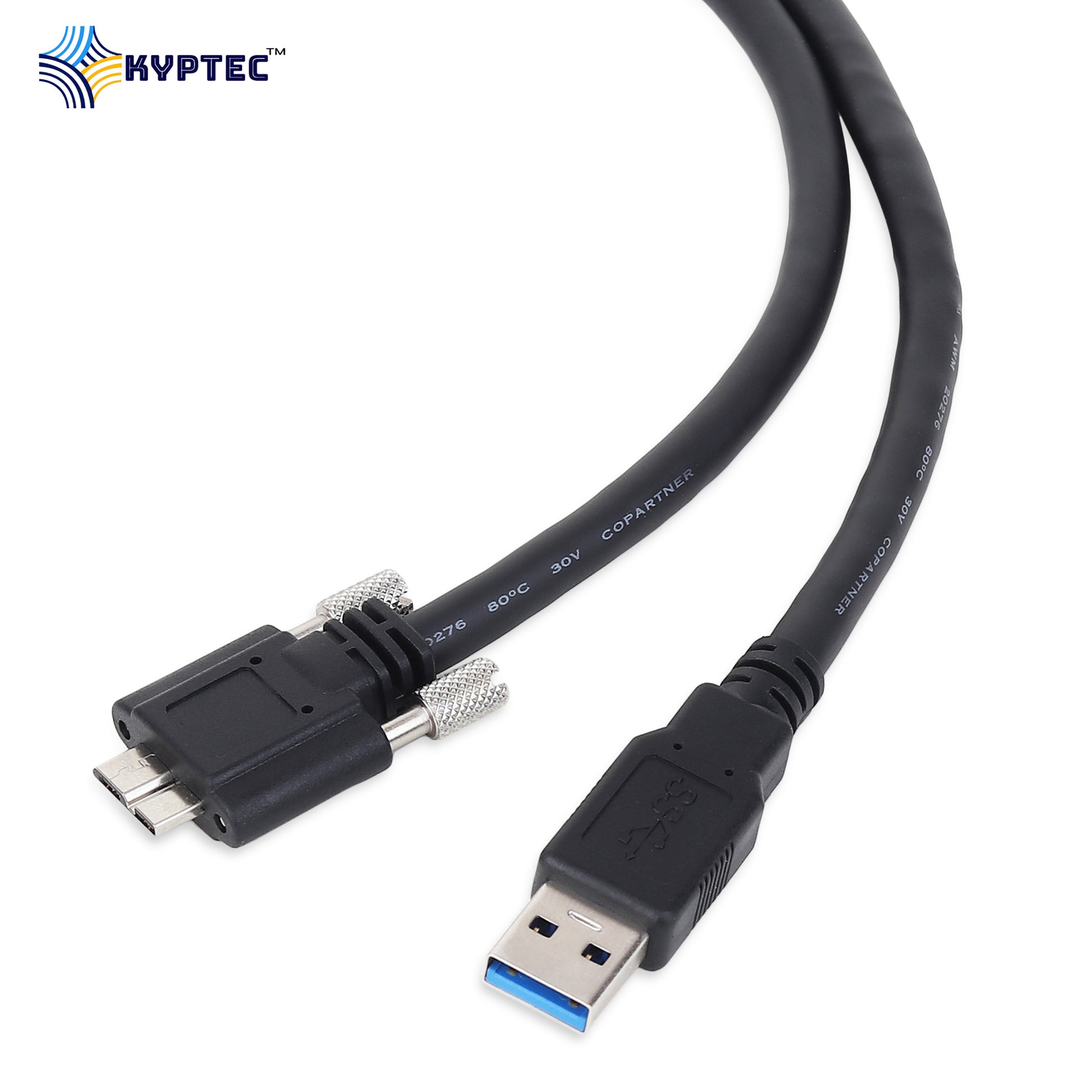

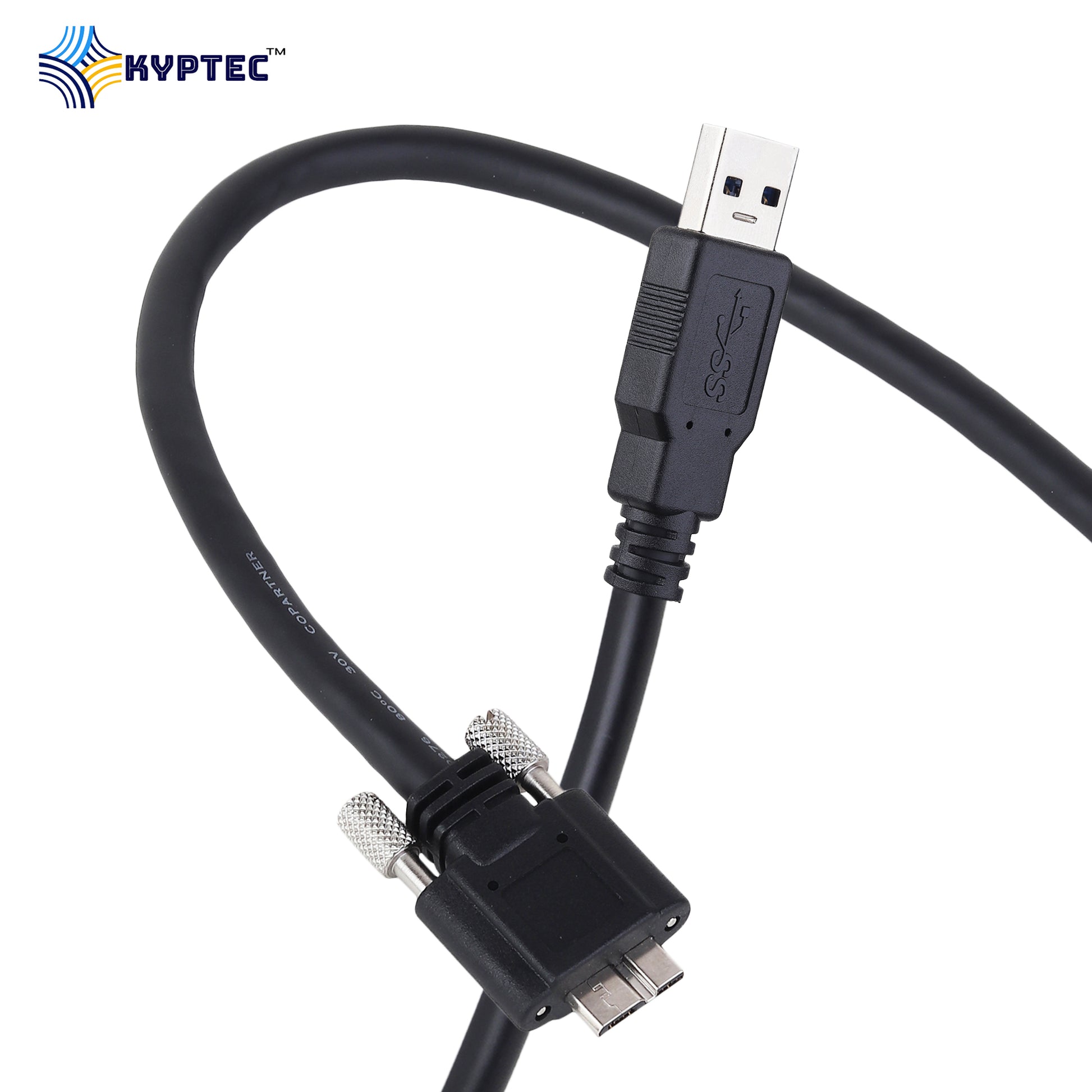

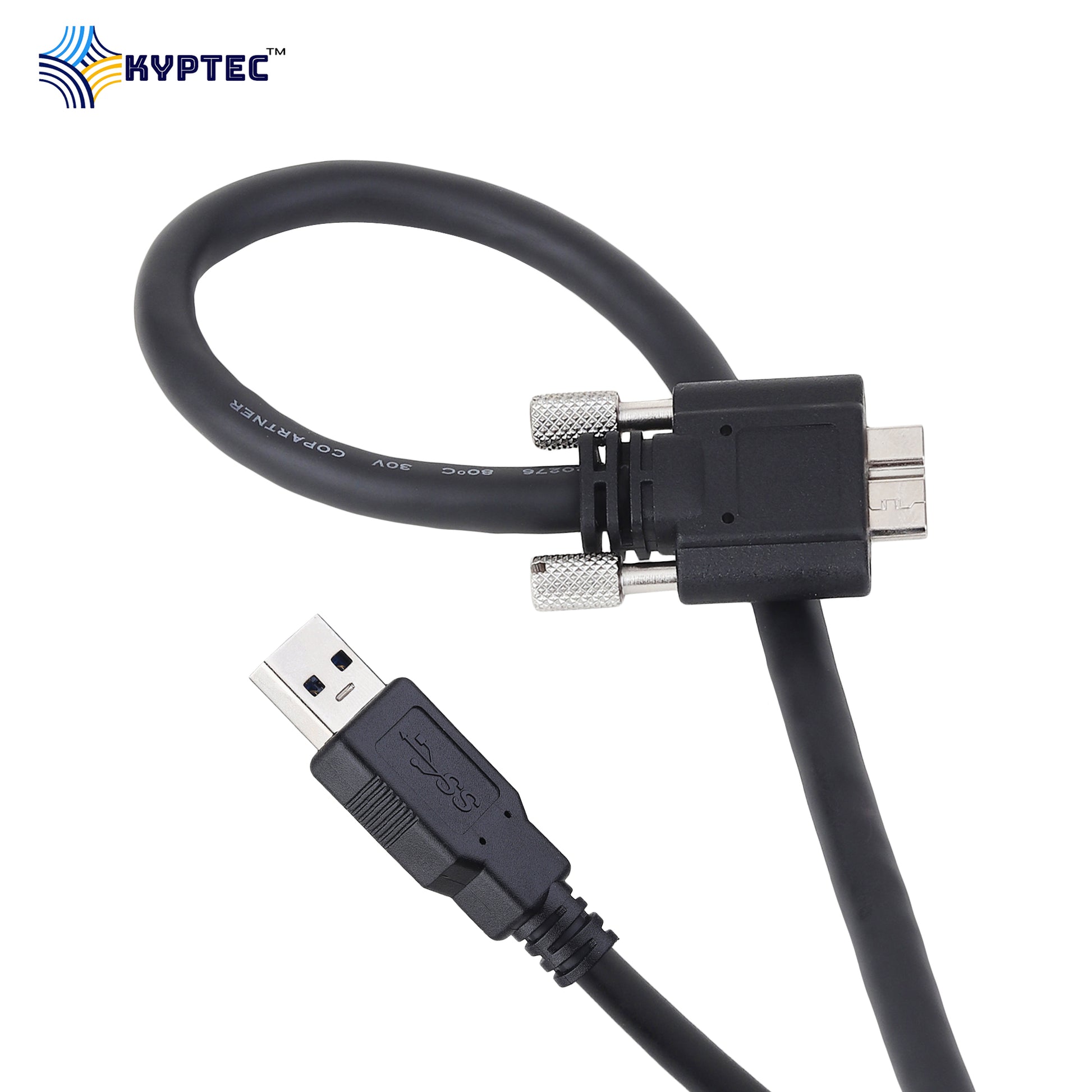

Machine Vision USB 3.0 A Male to Micro USB 3.0 Male With Screw Camera Cable - ( SKU:980 )

PRODUCT FEATURES:

• This cable offers Reliable high-speed data transmission, gives Excellent mechanical performance.
• Our KYPTEC USB 3.0 A Male to Micro USB 3.0 Male With Screw on the camera side connector will provide a secure connection.
• The cables deliver fast performance combined with an extra rugged design. This cable assembly is built to last in tough environments. The cable assembly designed to withstand continuous motion in industrial or factory automation settings
• The Cable Assembly built to USB 3.0 standards and speeds.

  APPLICATIONS:
• Industrial and scientific imaging systems
• Machine Vision System
• Industrial machine vision cameras
• Product Testing/Image Recognition
• Factory Automation Systems.
• Data acquisition or PLC communications

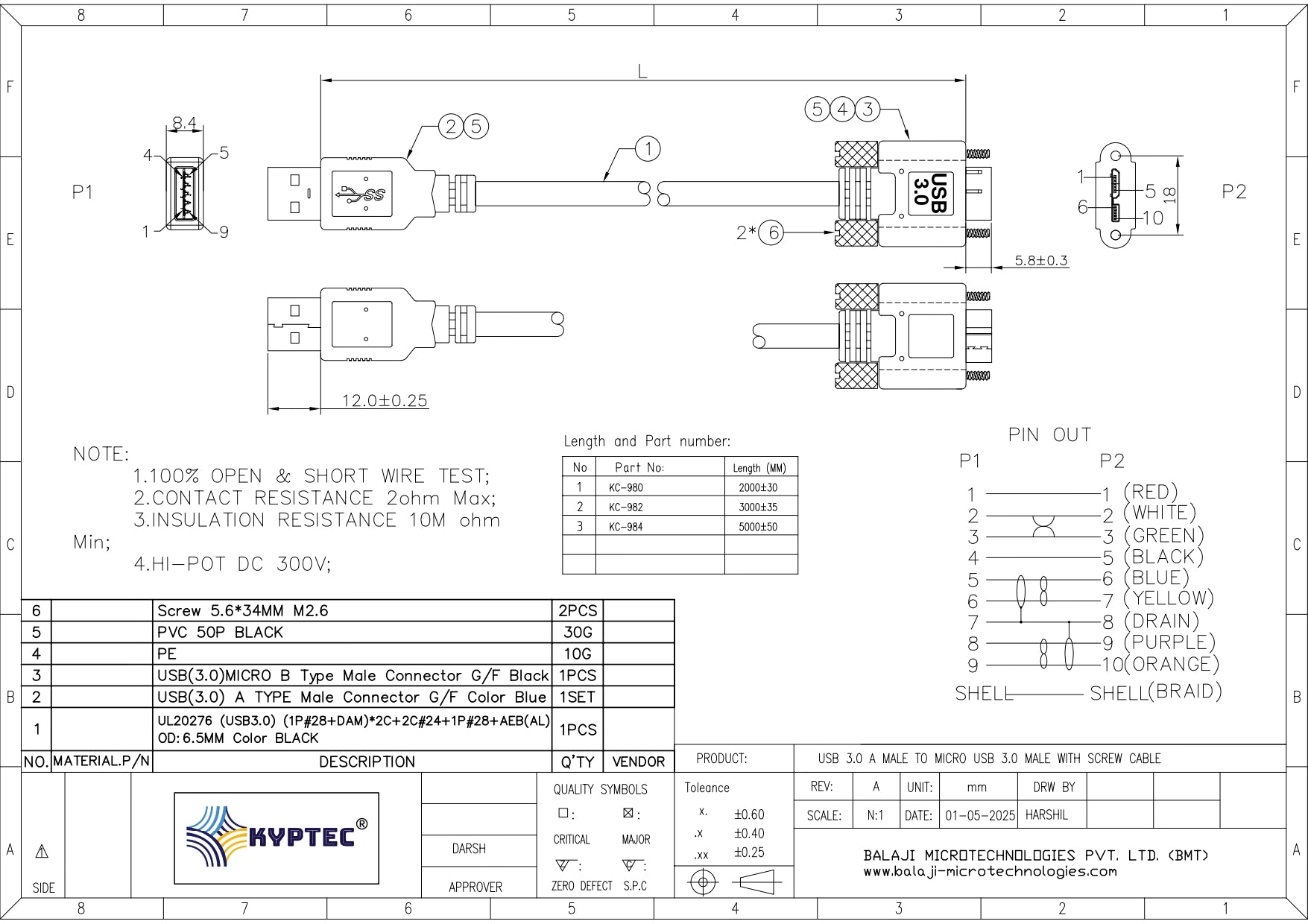

PRODUCT SPECIFICATIONS:

• Cable Assembly Type : Machine Vision USB 3.0 A Male to Micro USB 3.0 Male With Screw Camera Cable
• Cable Type : Data Cable, USB type
• Interface: USB
• Cable Length Options : 2 Meter / 3 Meter / 5 Meter, Other Cable length on request.

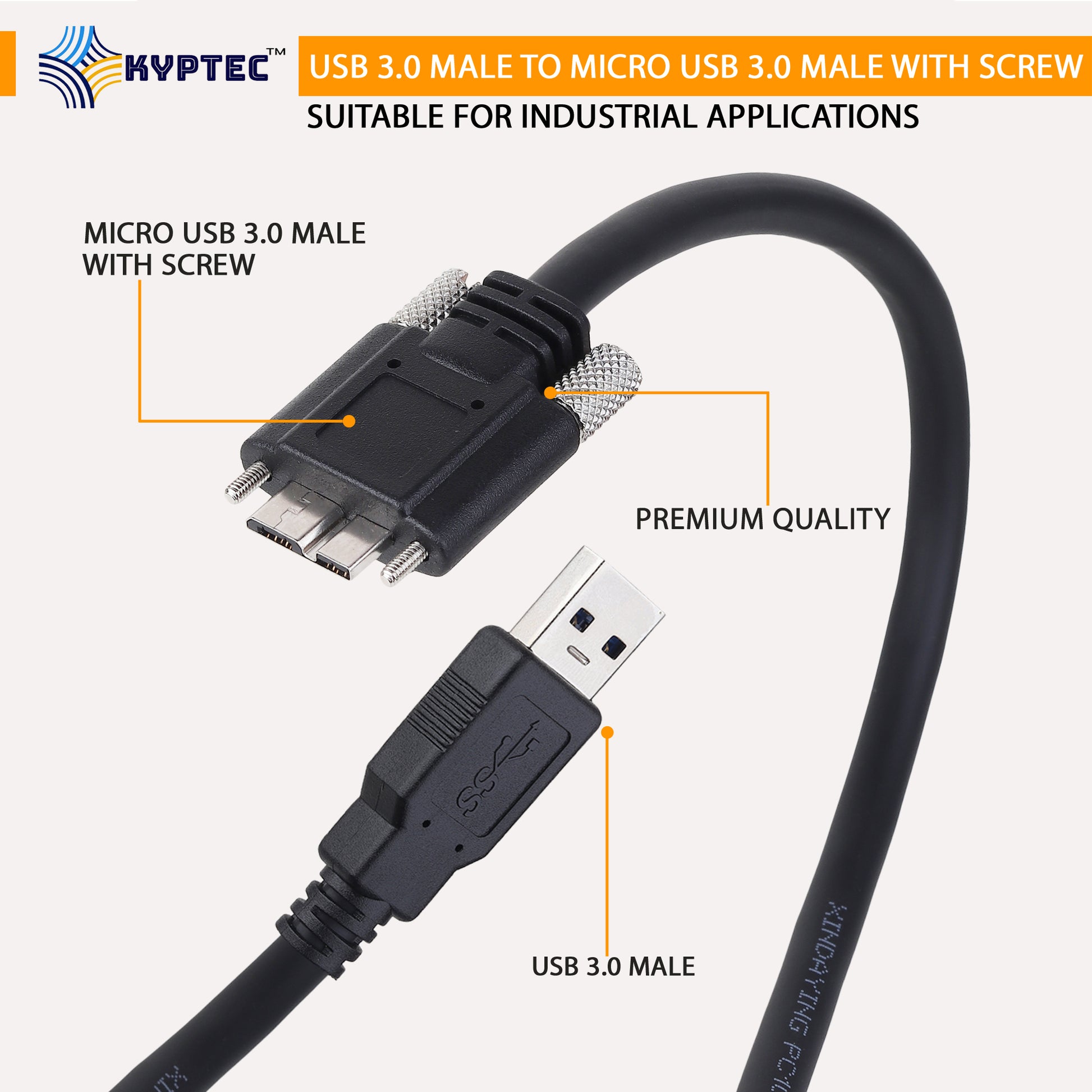

• Connector A (Camera Side): Micro USB (With Locking Screws)
• Connector B (Host Side): USB Type A
• Connector End A Pin Count (Camera Side): 10 Pins
• Connector End B Pin Count (Host Side): 9 Pins
• Connector A Gender: Male
• Connector B Gender: Male
• Cable Specification : Highly flexible, PVC Cable
• Cable Color : Black
• Connector Orientation (End A) : Straight Type
• Connector Orientation (End B) : Straight Type.
• Outer Sheath : Shiny black, UV-resistant, abrasion resistant, water repellent etc,.

Package Includes:

• 1 x Machine Vision USB 3.0 A Male to Micro USB 3.0 Male With Screw Camera Cable

Note :- Product Images are shown for illustrative purposes only and may differ from the actual product.
